Description
Details:

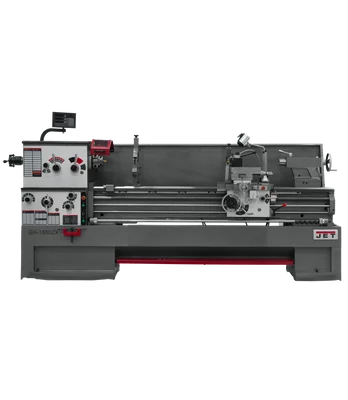

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10” three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you’ve come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features:
- Articulating LED work lamp
- Centrally located controls with jog button
- Electronic Chuck Key Holder
- Five position automatic carriage stop increases productivity
- Full length splash guard and coolant return
- Large capacity steady rest with ball bearing tips
- Large easy to use foot brake
- Mounting pads and levelers
- Removable gap allows large diameter work
- Tool box and adjusting tools
Specifications:
| Stock Number | JT9-321578-4 |
|---|---|
| Carriage Travel (In.) | 74-5/16 |
| Compound Slide Travel (In.) | 5-1/8 |
| Cross Slide Travel (In.) | 9 |
| Drive | Geared Head |
| Length of Gap (In.) | 12 |
| Max Tool Size (In.) | 1 x 1 |
| Model Number | GH-1880ZX |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Number of Inch Threads | 61.0000 |
| Number of Longitudinal and Cross Feed Rates | 46/31 |
| Number of Metric Threads | 24.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | .0006 – .0360 |
| Range of Inch Threads (TPI) | 1-5/8 – 72 |
| Range of Longitudinal Feeds (IPR) | .0015 – .0900 |
| Range of Metric Threads | .05 – 20 |
| Range of Spindle Speeds (RPM) | 25 – 1,800 |
| Size | 18 x 80 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-8 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Steady Rest Capacity (In.) | 3/8 – 7-3/4 |
| Style (Type) | Engine – Large Spindle Bore |
| Swing Over Bed (In.) | 18 |
| Swing Over Cross Slide (In.) | 11 |
| Swing Through Gap (In.) | 27-1/2 |
| Tailstock Spindle Travel (In.) | 5 |
| Taper in Tailstock Spindle | MT-5 |
| Warranty | 2 Year |
| Width of Bed (In.) | 13-1/8 |
| Gross Weight | 6942.0 |
| Net weight | 6942.0 |
