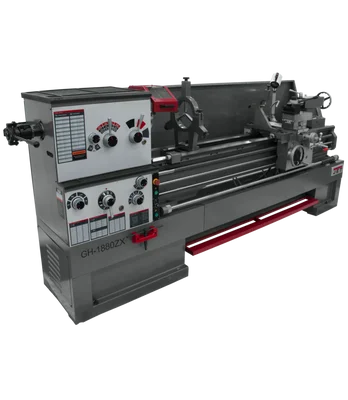

Jet GH-1880ZX Lathe w/Taper Attachment & Collet Closer (322486)

Description

The Jet GH-1880ZX Lathe w/Taper Attachment & Collet Closer (322486) is a heavy-duty engine lathe designed for professional machinists and metalworking shops. This powerful machine boasts a 7-1/2 HP motor and a large 3-1/8″ spindle bore that allows for handling of substantial workpieces.

KEY FEATURES AND BENEFITS:

• Large Spindle Bore (3-1/8″): Capable of handling substantial workpieces for diverse machining tasks.
• Universal Gearbox: Allows for various thread cutting options (inch, metric, diametral, and module pitch) without gear changes.
• One-piece Cast Iron Base: Provides stability and vibration dampening for clean and accurate cuts.
• Hardened and Ground Bed Ways: Ensures precision and long-term durability in metalworking operations.
• Removable Gap Bed: Expands turning capacity to accommodate larger diameter objects beyond the standard 18″ swing.
• 7-1/2 HP Motor: Offers powerful performance for demanding tasks.
• Comprehensive Accessories: Includes chucks, face plate, tool post, follow rest, steady rest, and a fully integrated coolant system for enhanced functionality.

SPECIFICATIONS:

• Product Name: Jet GH-1880ZX Lathe w/Taper Attachment & Collet Closer
• Model Number: 322486
• Capacity: 3-1/8″ spindle bore, 18″ swing over bed, 27-1/2″ swing with removable gap
• Motor: 7-1/2 HP, 3-phase
• Construction: One-piece cast iron base, ANSI Class 50 wear-resistant cast iron bed ways
• Additional Features: Universal gearbox, hardened and ground bed ways, Turcite-B on bed sliding surfaces, T-slotted compound slide with four-way tool post
• Included Accessories: 3-jaw scroll chuck, 4-jaw independent chuck, face plate, four-way tool post, follow rest, steady rest, fully integrated coolant system, foot brake, articulating halogen work lamp

HOW TO USE:

• Step 1: Position the lathe on a stable, level surface and secure it using the included mounting pads and levelers.
• Step 2: Connect the lathe to a compatible 3-phase power supply.
• Step 3: Install the appropriate chuck (e.g., 3-jaw or 4-jaw) and secure your workpiece in the spindle bore.
• Step 4: Utilize the universal gearbox to select the desired thread cutting option and adjust the speed settings accordingly.
• Step 5: Use the one-shot lubrication system to ensure smooth operation and prolong the life of the machine components.
• Step 6: Engage the jog function and centrally located controls for precise adjustments and operation.
• Step 7: Monitor the coolant system to keep the work area clean and the cutting tools cool.
• Step 8: Use the removable gap bed feature when turning larger diameter objects and utilize the steady rest for additional support.
• Step 9: Follow all safety procedures, including the use of the large foot brake for quick stops and the articulating halogen work lamp for better visibility.

BENEFITS OF USING THE JET GH-1880ZX LATHE:

• Robust 7-1/2 HP motor for handling heavy-duty metalworking tasks with ease.
• Large spindle bore and removable gap bed for accommodating a variety of workpiece sizes.
• Universal gearbox provides flexibility in thread cutting without the need for gear changes.
• Hardened and ground bed ways ensure precision and longevity of the machine.
• Comprehensive set of accessories enhances the lathe’s functionality for various applications.
• One-piece cast iron base and integrated coolant system maintain machine stability and cleanliness.
• User-friendly features like the one-shot lubrication system and centrally located controls for ease of use.

FEATURES:

• Large 3-1/8″ spindle bore for handling substantial workpieces.
• 7-1/2 HP motor for powerful performance in demanding metalworking applications.
• Universal gearbox allows for thread cutting in inch, metric, diametral, and module pitches without manual gear changes.
• One-piece cast iron base provides stability, absorbing vibration for clean, precise cuts.
• Removable gap bed expands turning capacity, allowing for the machining of larger diameter objects up to 27-1/2″.
• Hardened and ground bed ways made of ANSI Class 50 wear-resistant cast iron for durability.
• Comes with a variety of standard accessories, including 3-jaw and 4-jaw chucks, a face plate, four-way tool post, follow rest, and steady rest.
• Fully integrated coolant system with splash guard and return to keep the work area clean and tools cool.
• One-shot lubrication system for simplified maintenance and reduced friction on bed sliding surfaces.
• Large foot brake for easy control and articulating halogen work lamp for enhanced workspace illumination.
