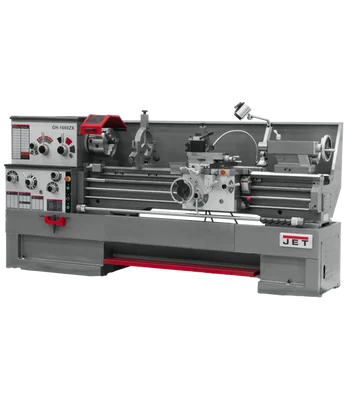

Jet GH-1860ZX Lathe w/Taper Attachment & Collet Closer (321961)

Description

The Jet GH-1860ZX Lathe w/Taper Attachment & Collet Closer (321961) is a robust and high-performance metalworking lathe designed for professional machinists and workshops. With its powerful 7-1/2 horsepower, 3-phase motor, this lathe is capable of handling a wide range of demanding metalworking tasks. The lathe’s large 3-1/8” bore spindle and versatile universal gearbox allow for threading in inch, metric, diametral, and module pitches without the need for gear changes. Its heavy-duty, one-piece cast iron base ensures stability and precision by absorbing vibrations, making it a reliable choice for both precision and heavy-duty metalworking applications.

KEY FEATURES AND BENEFITS:

• Large Capacity: The lathe provides an 18″ swing over the bed and a 60″ distance between centers, suitable for large workpieces. The removable gap bed allows for even larger diameter work up to 29-1/2″.
• Powerful Performance: Equipped with a 7-1/2 HP, 3-phase motor, the lathe delivers sufficient power for a wide range of materials, ensuring efficient and effective heavy cuts.
• Universal Gearbox: Allows for easy threading in inch, metric, diametral, and module pitches without manual gear changes, enhancing versatility and productivity.
• Precision and Stability: The one-piece cast iron base minimizes vibration, while high-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground for long-lasting durability and precision.
• Comprehensive Accessories: Includes essential accessories such as a 10″ 3-jaw chuck, 12″ 4-jaw chuck, 16″ face plate, and more, ensuring you have everything you need for a wide range of metalworking applications.

SPECIFICATIONS:

• Motor: 7-1/2 HP, 3-phase
• Bore Spindle: 3-1/8”
• Swing Over Bed: 18”
• Distance Between Centers: 60”
• Spindle Speeds: 12 speeds ranging from 25 to 1,800 RPM
• Threading: Inch, metric, diametral, and module pitch
• Weight: 4,800 lbs
• Dimensions: 108″ (L) x 38″ (W) x 48″ (H)

HOW TO USE:

• Setup: Secure the lathe on a sturdy, level surface. Connect the power supply and ensure all safety measures are in place.
• Load the Workpiece: Place your workpiece into the appropriate chuck (3-jaw or 4-jaw) and secure it firmly.
• Adjust Settings: Select the desired spindle speed and threading option using the universal gearbox. Adjust the tool post and set the cutting tool.
• Operate the Lathe: Use the control panel to start the lathe. Utilize the DRO system for real-time positioning and precision. Perform your machining operation (turning, facing, threading, etc.) as required.
• Coolant System: Activate the integrated coolant system to maintain optimal temperatures and prolong tool life.
• Safety and Shutdown: After completing your work, use the foot brake to safely stop the lathe. Turn off the power and clean the work area.

BENEFITS OF USING JET GH-1860ZX LATHE W/TAPER ATTACHMENT & COLLET CLOSER (321961):

• Enhanced Productivity: Features like the automatic carriage stop and universal gearbox streamline operations and reduce downtime.
• High Precision: The stable, vibration-absorbing cast iron base and DRO system ensure precise and accurate machining.
• Versatility: The ability to handle various threading types and large workpieces makes it suitable for a wide range of metalworking tasks.
• Durability: Constructed with high-quality materials and designed for long-lasting use, ensuring reliable performance over time.
• Comprehensive Accessories: Comes equipped with essential tools and accessories, providing everything you need for efficient metalworking.

FEATURES:

• Robust Construction: One-piece cast iron base ensures stability and vibration absorption.
• Universal Gearbox: Enables various threading options without the need for manual gear changes.
• High Capacity: Accommodates large workpieces with an 18″ swing over bed and 60″ between centers, expandable with the removable gap.
• Precision Spindle: Large 3-1/8” bore spindle supported by tapered and ball bearings for smooth operation.
• Advanced DRO System: ACU-RITE 303 provides real-time positioning for accurate and efficient machining.
• Comprehensive Accessories: Includes a variety of chucks, face plates, rests, and a full coolant system for diverse metalworking applications.
