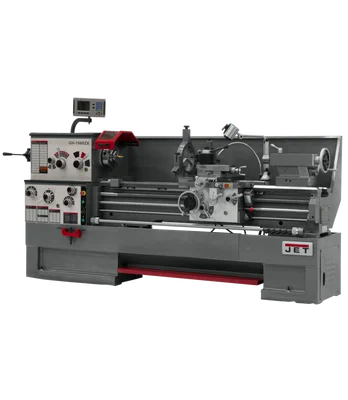

Jet GH-1860ZX Lathe w/Newall DP700 DRO Taper & Collet (321557)

Description

The Jet GH-1860ZX Lathe w/Newall DP700 DRO Taper & Collet (321557) is a heavy-duty machine built for precision and performance in your metal shop. This lathe boasts a powerful 7.5 HP motor, ideal for tackling even the most challenging projects. The large 3-1/8″ spindle bore accommodates substantial workpieces, while the one-piece cast iron base minimizes vibration during operation, ensuring clean and accurate cuts.

KEY FEATURES AND BENEFITS:

• Versatile Gearbox: The universal gearbox eliminates the need for frequent gear changes, allowing for various threading needs (inch, metric, diametral, and module pitch) with ease.
• Precision and Durability: Newall DP700 Digital ReadOut (DRO) provides real-time position readout for precise adjustments. Turcite-B on bed sliding surfaces minimizes wear.
• Additional Capabilities: Includes taper attachment and optional collet closer for working with smaller diameter pieces.

SPECIFICATIONS:

• Powerful 7.5 HP motor
• Spindle bore: 3-1/8″
• Bed ways: Hardened and ground cast iron
• Spindle speeds: 12 speeds, ranging from 25 to 1,800 RPM
• Standard Equipment: 10″ 3-jaw scroll chuck, 12″ 4-jaw independent chuck, 16″ face plate, follow rest, large capacity steady rest, fully integrated coolant system

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1860ZX Lathe:

1. Ensure the lathe is properly set up and powered.
2. Select and mount the appropriate chuck or faceplate for your workpiece.
3. Adjust the spindle speed as per the material and cutting requirements.
4. Utilize the Newall DP700 DRO for accurate positioning of the carriage and compound slide.
5. Engage the universal gearbox for threading operations, adjusting as needed for inch, metric, diametral, or module pitch threads.

BENEFITS OF USING Jet GH-1860ZX Lathe w/Newall DP700 DRO Taper & Collet (321557):

• Precise digital readout with Newall DP700 DRO.
• Robust construction with a one-piece cast iron base and hardened bed ways.
• Enhanced versatility with taper attachment and optional collet closer.

FEATURES:

• T-slotted compound slide with four-way tool post for versatile machining operations.
• Removable gap allows for turning larger diameter workpieces.
• Wide range of spindle speeds for flexibility in cutting different materials.
• Fully integrated coolant system for efficient chip removal and tool cooling.
