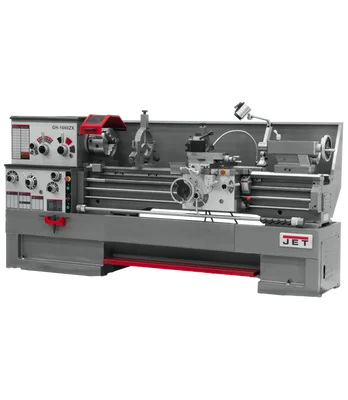

Jet GH-1860ZX Lathe w/ACU-RITE 203 DRO & Taper Attachment (321504)

Description

The Jet GH-1860ZX Lathe w/ACU-RITE 203 DRO & Taper Attachment (321504) is a powerful and versatile machine tool designed for professional metalworking applications. It boasts a 7.5 horsepower, 3-phase motor that delivers plenty of muscle for even the most demanding tasks. The large 3-1/8″ spindle bore can handle large diameter workpieces, while the swing over bed of 18 inches and swing over gap of 27-1/2 inches further expands its capabilities.

KEY FEATURES AND BENEFITS

• High Power: Equipped with a 7.5 horsepower, 3-phase motor for handling demanding tasks with ease.
• Large Capacity: Features a 3-1/8″ spindle bore and a swing over bed of 18 inches, accommodating larger workpieces.
• Universal Gearbox: Allows for threading in inch, metric, diametral, and module pitches without manual gear changes.
• ACU-RITE 203 DRO: Provides precise positioning with real-time feedback on the movement of the carriage and cross slide.
• Durable Construction: Made with high-quality ANSI Class 50 wear-resistant cast iron bed ways and a one-piece cast iron base for stability.
• Versatile Features: Includes a T-slotted compound slide with a four-way tool post and a removable gap for larger diameter workpieces.
• Enhanced Productivity: The five-position automatic carriage stop increases productivity by simplifying repetitive tasks.
• Comprehensive Accessories: Comes with a range of accessories including chucks, face plate, tool post, follow rest, steady rest, and a fully integrated coolant system.

SPECIFICATIONS

• Product Name: Jet GH-1860ZX Lathe w/ACU-RITE 203 DRO & Taper Attachment
• Model Number: 321504
• Motor: 7.5 horsepower, 3-phase, 230/460 volt
• Spindle Bore: 3-1/8″
• Swing Over Bed: 18 inches
• Swing Over Gap: 27-1/2 inches
• Construction: One-piece cast iron base, ANSI Class 50 wear-resistant cast iron bed ways
• Gearbox: Universal gearbox for threading without manual gear changes
• Digital Readout: ACU-RITE 203 DRO
• Included Accessories: 10″ 3-jaw chuck, 12″ 4-jaw chuck, 16″ face plate, four-way tool post, follow rest, large capacity steady rest, fully integrated coolant system, foot brake, articulating halogen work lamp
• Additional Features: Chrome molybdenum headstock gears, one-shot lubrication system, five-position automatic carriage stop

HOW TO USE

• Step 1: Install the lathe on a stable, level surface using the provided mounting pads and levelers.
• Step 2: Connect to a 3-phase power source (230/460 volts) as per your setup.
• Step 3: Attach the appropriate chuck (3-jaw or 4-jaw) and secure your workpiece in the spindle bore.
• Step 4: Set up the desired threading type using the universal gearbox, and adjust speed as required for your material.
• Step 5: Utilize the ACU-RITE DRO 203 for precise measurements and tool positioning.
• Step 6: Engage the one-shot lubrication system to ensure smooth carriage and tool post movement.
• Step 7: Operate the lathe using the centrally located controls, and use the jog button for fine adjustments.
• Step 8: Maintain the coolant system for optimal chip removal and temperature regulation.
• Step 9: Follow safety protocols, and use the large foot brake and E-Stop button for immediate stopping if necessary.

BENEFITS OF USING THE JET GH-1860ZX LATHE

• Provides ample power with a 7.5 horsepower motor for tackling heavy-duty metalworking tasks.
• Large 3-1/8″ spindle bore and removable gap bed allow for versatile handling of various workpiece sizes.
• Universal gearbox enables quick and easy threading without manual gear changes, saving time and effort.
• The ACU-RITE 203 DRO system ensures precise measurement and tool positioning for accurate cuts.
• Robust construction with a one-piece cast iron base and hardened, ground bed ways for long-lasting durability and stability.
• Comes equipped with a comprehensive set of accessories for immediate use in various applications.
• Integrated coolant system maintains tool temperature and keeps the work area clean.
• User-friendly features such as one-shot lubrication and centrally located controls enhance operational convenience.
• Safety features including a large foot brake and E-Stop button ensure safe operation.

FEATURES

• 7.5 horsepower, 3-phase motor for heavy-duty metalworking tasks.
• 3-1/8″ spindle bore for accommodating substantial workpieces.
• Universal gearbox for threading in inch, metric, diametral, and module pitches without manual gear changes.
• One-piece cast iron base for reduced vibration and increased stability.
• Removable gap bed for turning larger diameter objects up to 27-1/2″.
• Hardened and ground bed ways made from ANSI Class 50 wear-resistant cast iron for long-term durability.
• Equipped with the ACU-RITE 203 DRO system for precise measurement and tool positioning.
• Comprehensive set of accessories including chucks, face plate, tool post, follow rest, steady rest, and an integrated coolant system.
