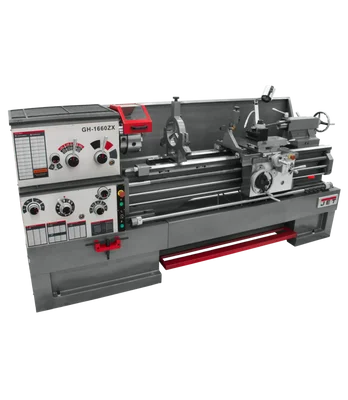

Jet GH-1660ZX Lathe With 3-Axis ACU-RITE 203 DRO (Compound) (321530)

Description

The Jet GH-1660ZX Lathe With 3-Axis ACU-RITE 203 DRO (Compound) (321530) is a precision metalworking machine designed for efficiency and accuracy. Built with a robust cast iron base, it ensures stability during operation, allowing for heavier cuts without compromising precision. The lathe’s powerful 7-1/2 HP motor provides ample power for various metalworking tasks, while its large spindle bore accommodates a wider range of workpieces.

KEY FEATURES AND BENEFITS:

• Powerful Performance: The 7-1/2 HP motor delivers the necessary power for efficient metal cutting.
• Precision Machining: The 3-axis ACU-RITE 203 DRO provides accurate measurements and control for precise machining.
• Versatility: The universal gearbox eliminates the need for gear changes, offering flexibility in thread cutting.
• Durability: The cast iron base absorbs vibrations, ensuring stability and accuracy.
• Efficiency: The five-position automatic carriage stop increases productivity.

SPECIFICATIONS:

• Swing Over Bed: 16 inches
• Swing Over Cross Slide: 10 inches
• Swing Through Gap: 25-7/8 inches
• Distance Between Centers: 60 inches
• Spindle Bore: 3-1/8 inches
• Spindle Speed Range: 25-1800 RPM
• Threading Capacities: 61 inch, 24 metric
• Feed Rates: 46 longitudinal, 31 cross
• Motor: 7-1/2 HP, 3 Ph, 230/460V
• Weight: 5795 lbs

HOW TO USE:

1. Set Up: Ensure the lathe is securely mounted on a level surface. Connect the power supply and check all safety features.
2. Mount Workpiece: Securely clamp the workpiece to the lathe bed or chuck, depending on the operation.
3. Tool Selection: Choose the appropriate cutting tool for the desired operation and securely mount it in the tool post.
4. Speed and Feed Settings: Set the spindle speed and feed rate based on the material and cutting tool used.
5. Engage Feed: Engage the feed to initiate the cutting process. Monitor the cutting operation and make adjustments as needed.
6. Coolant Application: Apply coolant to the cutting area to prevent overheating and improve tool life.
7. Safety Precautions: Always wear appropriate safety gear, including eye protection, ear protection, and gloves.

BENEFITS OF USING JET GH-1660ZX LATHE WITH 3-AXIS ACU-RITE 203 DRO (COMPOUND) (321530):

• Increased Productivity: Powerful motor and efficient features for faster job completion.
• Accurate and Precise Machining: ACU-RITE 203 DRO ensures precise measurements and cuts.
• Versatility: Handles various metalworking tasks.
• Durability: Built for long-lasting performance.
• Enhanced Safety: Equipped with built-in safety features for secure operation.

FEATURES:

• Powerful 7-1/2 HP motor
• Large 3-1/8″ spindle bore
• Universal gearbox
• Rigid cast iron base
• ACU-RITE 203 DRO
• Removable gap
• Safety features
