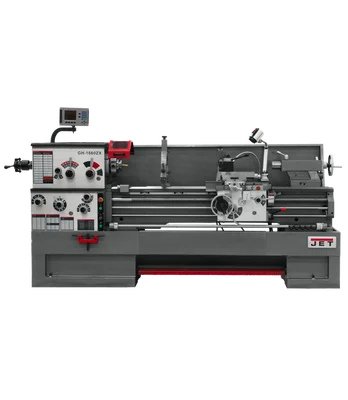

Jet GH-1660ZX Lathe w/300S DRO and Collet Closer (321390)

Description

Introducing the Jet GH-1660ZX Lathe w/300S DRO and Collet Closer (321390), a powerful and versatile engine lathe ideal for professional machine shops and demanding hobbyists. This robust lathe boasts a large 3-1/8″ bore spindle that accommodates sizable workpieces, making it perfect for heavy-duty applications. The universal gearbox eliminates the need for gear changes, allowing you to cut inch, metric, diametral, and module pitch threads with ease.

KEY FEATURES AND BENEFITS:

• For increased capacity, the GH-1660ZX features a removable gap that expands the swing capacity to a remarkable 25-7/8 inches. This allows you to tackle larger diameter projects without limitations.
• The lathe is powered by a robust 7-1/2 horsepower motor that delivers ample power for even the most challenging cuts.
• Enhanced Precision and Control:
• The JET GH-1660ZX prioritizes accuracy with the inclusion of a 300S Digital ReadOut (DRO). This digital display provides real-time position data for both the carriage and cross slide, ensuring exceptional machining precision.
• Additionally, the collet closer facilitates swift and effortless tool changes for rods and bars.
• Built to Last:
• The JET GH-1660ZX is engineered for long-lasting performance. The lathe features a one-piece cast iron base that absorbs vibration for smoother operation and allows for heavier cuts. The high-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground to ensure exceptional stability and minimal deflection.
• Additional Features:
• 12 spindle speeds ranging from 25 to 1,800 RPM provide versatility for machining various materials.
• 2 longitudinal and cross feeds offer a wide range of cutting options.
• Five-position automatic carriage stop boosts productivity.
• T-slotted compound slide with a four-way tool post for increased tooling flexibility.
• Fully integrated coolant system for efficient chip removal.
• Large, easy-to-use foot brake for enhanced control.
• Wide range of included accessories such as chucks, a face plate, tool post, rests, and more.

SPECIFICATIONS:

• Motor: 7-1/2 horsepower
• Spindle Bore: 3-1/8 inches
• Swing Capacity: Up to 25-7/8 inches (with gap bed)
• Spindle Speeds: 25 to 1,800 RPM
• Bed Ways: ANSI Class 50 wear-resistant cast iron

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1660ZX lathe:

1. Ensure the lathe is securely positioned and leveled.
2. Power on the lathe and adjust the spindle speed as needed.
3. Mount the workpiece using the appropriate chuck or faceplate.
4. Select the cutting tool and secure it in the tool post.
5. Engage the gearbox for thread cutting or other operations as required.
6. Monitor the operation using the 300S DRO for precision.
7. Use the integrated coolant system to maintain optimal cutting conditions.
8. Utilize the automatic carriage stop for efficient machining.
9. After use, apply necessary maintenance procedures for long-lasting performance.

BENEFITS OF USING Jet GH-1660ZX Lathe w/300S DRO and Collet Closer (321390):

• Powerful and versatile engine lathe for professional applications
• Robust construction and powerful motor for heavy-duty machining
• 300S DRO for enhanced precision and control
• Comprehensive set of accessories included for immediate productivity

FEATURES:

• Large 3-1/8″ bore spindle for accommodating sizable workpieces
• Universal gearbox for eliminating manual gear changes
• Removable gap for increased swing capacity
• One-piece cast iron base for vibration absorption and stability
