Description

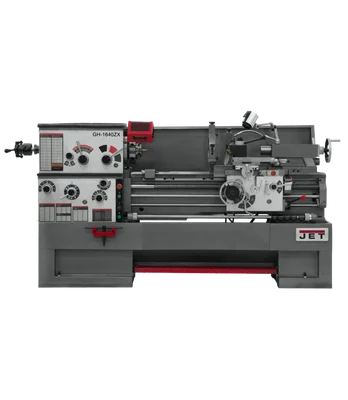

The Jet GH-1640ZX Lathe With Collet Closer (321439) is a robust and versatile metalworking machine designed for precision and efficiency. Built with a sturdy cast iron base and a powerful 7.5 HP motor, this lathe delivers exceptional performance for various metalworking tasks.
KEY FEATURES AND BENEFITS:
- Powerful and accurate: 3-1/8″ spindle supported by two tapered and one ball bearing for smooth operation and heavy-duty cutting.
- Efficient: Five-position automatic carriage stop and universal gearbox for increased productivity and versatile threading capabilities.
- User-friendly: Centrally located controls, jog button, and large foot brake for convenient operation.
- Safe: Fully integrated coolant system with splash guard for a clean and safe working environment.
- Durable: ISO 9001 certified construction, chrome molybdenum headstock gears, and one-year warranty for long-lasting performance.
SPECIFICATIONS:
- Swing Over Bed: 16 in
- Swing Over Cross Slide: 10 in
- Swing Through Gap: 25-7/8 in
- Length of Gap: 12-1/4 in
- Distance Between Centers: 40 in
- Spindle Bore: 3-1/8 in
- Spindle Mount: DL-8
- Spindle Taper: MT-7 (MT-5 with sleeve)
- Number of Spindle Speeds: 12
- Spindle Speed Range: 25-1800 RPM
- Number of Longitudinal and Cross Feeds: 12
- Longitudinal Feed Range: 0.0015 to 0.0913 in/rev
- Cross Feed Range: 0.0006 to 0.0365 in/rev
- Number of Inch Threads: 61
- Inch Thread Range: 1-5/8 to 72
- Number of Metric Threads: 24
- Metric Thread Range: 0.05 to 20 mm
- Maximum Tool Size: 1×1 in
- Maximum Compound Slide Travel: 5-1/8 in
- Maximum Cross Slide Travel: 9 in
- Maximum Carriage Travel: 35 in
- Tailstock Spindle Travel: 5 in
- Tailstock Taper: MT-4
- Follow Rest Capacity: 1/2 to 3-1/2 in
- Steady Rest Capacity: 3/8 to 7 in
- Bed Width: 13-3/8 in
- Motor: 7.5 HP, 3 Ph, 230/460V (prewired 230V)
- Dimensions: 48″ H x 40″ W x 97.5″ L
HOW TO USE:
- Set up the lathe: Ensure the lathe is securely placed on a level surface. Connect the power supply and check for any loose components.
- Mount the workpiece: Securely clamp the workpiece between the headstock and tailstock using the appropriate chuck or faceplate.
- Select desired speed: Choose the appropriate spindle speed for the material and cutting tool you are using.
- Engage feed: Select the desired feed rate for the cutting operation.
- Engage power: Turn on the lathe and begin the cutting process.
- Monitor and adjust: Continuously monitor the cutting process and make adjustments as needed to maintain desired results.
- Coolant application: If necessary, apply coolant to the cutting tool to prevent overheating and improve cutting performance.
- Safety precautions: Always wear appropriate safety gear, such as safety glasses and ear protection. Follow the lathe’s safety guidelines.
BENEFITS OF USING JET GH-1640ZX LATHE WITH COLLET CLOSER (321439):
- Precise and accurate metalworking capabilities
- Increased productivity with time-saving features
- Versatile for a wide range of metalworking tasks
- Durable construction for long-term performance
- Enhanced safety with integrated coolant system
FEATURES:
- 3-1/8″ spindle bore
- Powerful 7.5 HP motor
- Cast iron base for stability
- Universal gearbox for versatile threading
- Five-position automatic carriage stop
- Centrally located controls
- Large foot brake
- Fully integrated coolant system
- Safety features
