Description

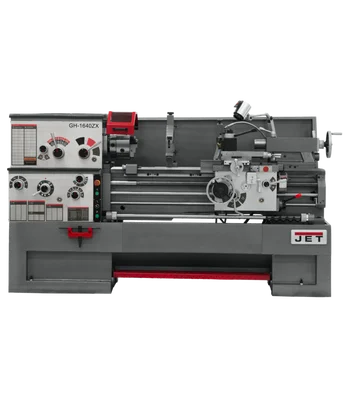

The Jet GH-1640ZX Lathe w/ACU-RITE 303 DRO & Taper Attachment (321382) is a high-performance lathe meticulously engineered to deliver exceptional results in professional metalworking shops. This robust machine boasts a 7.5 horsepower, 3-phase motor that tackles even the toughest materials with ease. Its 16-inch swing over bed capacity and 40-inch distance between centers accommodate a wide range of workpieces.
KEY FEATURES AND BENEFITS:
- Unmatched Versatility with Universal Gearbox:
- The GH-1640ZX eliminates the need for manual gear changes thanks to its innovative universal gearbox This system allows you to cut inch, metric, diametral, and module pitch threads seamlessly, streamlining your workflow and maximizing efficiency.
- Expand Your Capabilities with Removable Gap Bed:
- For projects requiring extra capacity, the GH-1640ZX features a removable gap bed. This ingenious design increases the swing capacity to a remarkable 25-7/8 inches, enabling you to turn larger diameter pieces without limitations.
- Built for Stability and Precision:
- The JET GH-1640ZX prioritizes stability and precision for accurate machining results. The one-piece cast iron base effectively absorbs vibration during heavy cuts, ensuring consistent performance. Additionally, the high-quality ANSI Class 50 wear-resistant cast iron bed ways are meticulously hardened and ground to maintain exceptional dimensional accuracy.
- Enhanced User Experience:
- The GH-1640ZX incorporates thoughtful features that elevate the user experience. The>one-shot lubrication system simplifies maintenance, while Turcite-B on the bed sliding surfaces minimizes friction for smooth operation. The T-slotted compound slide with a four-way tool post offers exceptional versatility for various tooling configurations.
- ACU-RITE 303 DRO for Accurate Measurements:
- The integrated ACU-RITE 303 DRO (Digital ReadOut) empowers you to achieve unmatched precision in your projects. This digital display provides real-time positional feedback, ensuring accurate measurements and eliminating guesswork.
- Taper Attachment for Versatile Turning Operations:
- The included taper attachment expands the lathe’s capabilities by allowing you to perform taper turning operations. This functionality is ideal for creating components with conical shapes, such as shafts or tool bits.
SPECIFICATIONS:
- Motor: 7.5 horsepower, 3-phase
- Swing over Bed: 16 inches
- Distance Between Centers: 40 inches
- Swing Capacity with Gap Bed: 25-7/8 inches
- Bed Ways: ANSI Class 50 wear-resistant cast iron
HOW TO USE:
Follow these steps for a simple guide on how to use the Jet GH-1640ZX lathe:
- Ensure the lathe is securely positioned and leveled.
- Power on the lathe and adjust the spindle speed as needed.
- Mount the workpiece using the appropriate chuck or faceplate.
- Select the cutting tool and secure it in the tool post.
- Engage the gearbox for thread cutting or other operations as required.
- Monitor the operation using the ACU-RITE 303 DRO for precision.
- Use the integrated coolant system to maintain optimal cutting conditions.
- Utilize the follow rest and steady rest for additional support if machining large workpieces.
- After use, apply one-shot lubrication to ensure smooth operation for future tasks.
BENEFITS OF USING Jet GH-1640ZX Lathe w/ACU-RITE 303 DRO & Taper Attachment (321382):
- High-performance machine for professional metalworking
- Extensive features for enhanced versatility
- ACU-RITE 303 DRO for precise measurements
- Comprehensive set of accessories included for immediate productivity
FEATURES:
- 7.5 horsepower, 3-phase motor for powerful operation
- Universal gearbox for simplified operations
- Removable gap bed for increased swing capacity
- One-piece cast iron base for stability and vibration absorption
- High-quality ANSI Class 50 wear-resistant cast iron bed ways
- ACU-RITE 303 DRO for precise positional feedback
- Taper attachment for versatile turning operations
- Comprehensive set of standard accessories included
