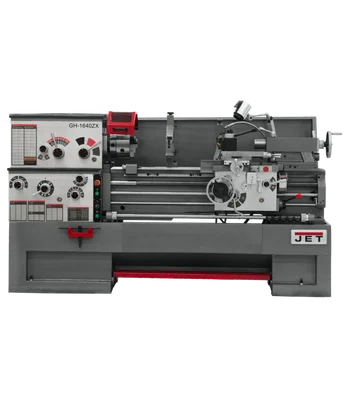

Jet GH-1640ZX 3PH 3-1/8″ Spindle Bore Geared Head Lathe (321930)

Description

The Jet GH-1640ZX 3PH 3-1/8″ Spindle Bore Geared Head Lathe (321930) is a high-performance geared head lathe designed for demanding metalworking applications. This robust lathe boasts a large 3-1/8″ bore spindle supported by a tapered and ball bearing system for rigidity during heavy cuts. The chrome molybdenum headstock gears are hardened, ground, and shaved for smooth operation and long-lasting durability.

KEY FEATURES AND BENEFITS:

• Large Spindle Bore: The 3-1/8″ bore accommodates large diameter workpieces.
• Universal Gearbox: Eliminates the need for manual gear changes, allowing for easy threading in various measurements.
• T-slotted Compound Slide: Offers exceptional control for various machining tasks.
• One-Shot Lubrication System: Minimizes friction and ensures smooth travel of the carriage.
• Durable Construction: One-piece cast iron base and ANSI Class 50 wear-resistant cast iron bed ways for long-lasting performance.
• Removable Gap: Allows for turning workpieces up to 25-7/8″ in diameter.
• Automatic Carriage Stop: Five-position stop increases productivity.
• User-Friendly Controls: Attractive chrome control levers, dials, and knobs.
• Precision Guaranteed: Includes a tolerance test certificate.

SPECIFICATIONS:

• Swing over Bed: 16 inches
• Swing over Cross Slide: 10-1/2 inches
• Swing Through Gap: 25-7/8 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 3-1/8 inches
• Number of Spindle Speeds: 12
• Spindle Speed Range: 25-1800 RPM
• Motor: 7.5 HP, 230/460V, 3-Phase
• Weight: 5187 lbs

HOW TO USE:

1. Set Up the Lathe: Place the lathe on a stable, level surface and connect it to a 230V or 460V power source. Secure the lathe using the provided mounting pads and levelers.
2. Install the Workpiece: Choose the appropriate chuck (3-jaw or 4-jaw) and secure your workpiece firmly in the chuck.
3. Adjust the Spindle Speed: Select the spindle speed using the speed dial, based on the material and required finish of the workpiece.
4. Setup the Cutting Tool: Insert the cutting tool into the four-way tool post and adjust its position for the desired operation.
5. Engage the Spindle: Use the control lever to start the spindle in the desired direction. Monitor the ACU-RITE 303 DRO for real-time positioning feedback.
6. Begin Machining: Move the cutting tool into position using the carriage handwheel and commence the machining process, adjusting the feed rate as necessary.
7. Monitor and Adjust: Continuously check the cutting process, making adjustments to speed and feed rates as needed for optimal results.
8. Stop the Lathe: Once machining is complete, disengage the spindle and power down the lathe using the foot brake for a controlled stop.
9. Cleanup and Maintenance: Remove the workpiece and clean the lathe, ensuring the lubrication system is topped up and all bed ways are free from debris.

BENEFITS OF USING THE JET GH-1640ZX 3PH 3-1/8″ SPINDLE BORE GEARED HEAD LATHE:

• Enhanced Precision: The universal gearbox and one-shot lubrication system ensure accurate and smooth operation.
• Time Efficiency: The user-friendly controls and comprehensive set of accessories streamline operations, reducing setup time.
• Versatile Application: Capable of handling various machining tasks, making it suitable for different projects and materials.
• Durable Build: High-quality materials and construction ensure long-term reliability and performance.
• Comprehensive Accessories: Includes a wide range of accessories for enhanced functionality and convenience.

FEATURES:

• High Swing Capacity: Offers a 16-inch swing over the bed, allowing for the machining of larger workpieces.
• Large Spindle Bore: The 3-1/8-inch spindle bore accommodates substantial material sizes for diverse applications.
• Seamless Threading Options: The universal gearbox supports multiple threading formats without manual gear changes.
• Robust Construction: The one-piece cast iron base and hardened bed ways provide stability and reduce vibration.
• Integrated Coolant System: Ensures efficient cooling of tools and workpieces to prolong tool life and improve surface finishes.
• Quick Tool Changes: The four-way tool post allows for rapid and easy tool setup and changes for efficient operation.
