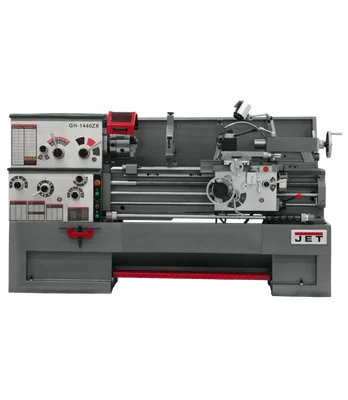

Jet GH-1440ZX Lathe With Taper Attachment (321467)

Description

The Jet GH-1440ZX Lathe With Taper Attachment (321467) is a high-performance 14″ x 40″ geared head metal lathe designed for demanding metalworking applications. Its robust construction, featuring a one-piece cast iron base and hardened bed ways, ensures exceptional rigidity and vibration dampening for precise machining of large workpieces.

KEY FEATURES AND BENEFITS:

• Powerful Motor: 7.5 horsepower, 3-phase motor delivers ample torque for tough jobs.
• Universal Gearbox: Allows effortless switching between inch, metric, diametral, and module pitch threads.
• Wide Range of Speeds and Feeds: 12 spindle speeds (42 – 1800 RPM) and 122 feed rates for versatile machining.
• Efficiency Enhancements: Carriage with one-shot lubrication system for easy maintenance. Turcite-B on bed sliding surfaces reduces friction.
• Exceptional Versatility: T-slotted compound slide with four-way tool post accommodates various tooling configurations.
• Removable Gap Bed: Enables turning of large diameter workpieces up to 23-5/8″.

SPECIFICATIONS:

• Swing: 14″ swing over bed
• Distance Between Centers: 40″
• Spindle Bore: 3-1/8″
• Motor: 7.5 horsepower, 3-phase electric motor
• Threading Capabilities: Inch, metric, diametral, module pitch threads
• Additional Features: Taper attachment, Turcite-B on bed sliding surfaces, removable gap bed

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1440ZX Lathe:

1. Ensure proper setup and safety precautions are in place.
2. Adjust spindle speed and feed rate as needed using the universal gearbox.
3. Secure workpiece using the provided chucks or face plate.
4. Utilize the one-shot lubrication system for regular maintenance.
5. Utilize the T-slotted compound slide and four-way tool post for tooling configurations.
6. Utilize the removable gap bed for turning large diameter workpieces.

BENEFITS OF USING Jet GH-1440ZX Lathe With Taper Attachment (321467):

• Robust construction ensures exceptional rigidity and vibration dampening.
• Powerful motor and universal gearbox for handling tough machining tasks.
• Versatile features like T-slotted compound slide and removable gap bed expand machining capabilities.
• Precision machining with high-quality components and bed ways.

FEATURES:

• One-piece cast iron base and hardened bed ways for rigidity and vibration dampening.
• 12 spindle speeds and 122 feed rates for versatile machining.
• Taper attachment for specialized machining operations.
• Comprehensive standard equipment including chucks, tool posts, steady rest, coolant system, and work lamp.
• Safety features like E-stop button on carriage for enhanced operational safety.
