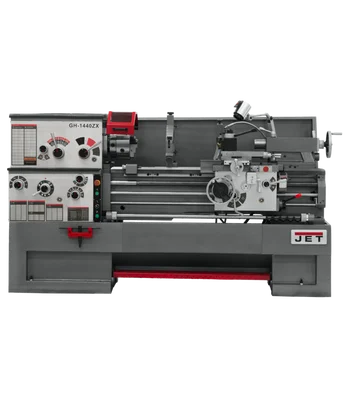

Jet GH-1440ZX Lathe w/Newall DP700 DRO & Taper Attachment (321570)

Description

The Jet GH-1440ZX Lathe w/Newall DP700 DRO & Taper Attachment (321570) is a high-performance machine designed for demanding metalworking applications. With a large 3-1/8″ spindle bore and a powerful 7-1/2 HP motor, it tackles challenging projects with ease. The one-piece cast iron base absorbs vibration for exceptional accuracy, while the hardened and ground bed ways ensure smooth operation.

KEY FEATURES AND BENEFITS:

• Versatility for Any Project: Universal gearbox allows seamless switching between inch, metric, diametral, and module pitch threads. Removable gap bed accommodates larger diameter workpieces up to 23-5/8″.
• Precision Made Easy: Integrated Digital Readout (DRO) system provides real-time measurement feedback for precise cuts. Four-way tool post and T-slotted compound slide enhance tool flexibility and machining operations.
• Built to Last: Premium construction with hardened and ground chrome molybdenum headstock gears. One-shot lubrication system for easy maintenance. Turcite-B on bed sliding surfaces minimizes friction for optimal performance.

SPECIFICATIONS:

• Swing: 14″ swing over bed
• Distance Between Centers: 40″
• Spindle Bore: 3-1/8″
• Motor: 7-1/2 HP, 3-phase electric motor
• Threading Capabilities: Inch, metric, diametral, module pitch threads
• Additional Features: Newall DP700 DRO, taper attachment

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1440ZX Lathe:

1. Ensure proper setup and safety precautions are in place.
2. Utilize the universal gearbox for seamless threading adjustments.
3. Secure the workpiece using the provided chucks or face plate.
4. Maintain smooth operation with regular one-shot lubrication and Turcite-B.
5. Utilize the removable gap bed for machining large diameter workpieces.

BENEFITS OF USING Jet GH-1440ZX Lathe w/Newall DP700 DRO & Taper Attachment (321570):

• High-performance machine designed for demanding metalworking applications.
• Precision cuts with integrated Digital Readout (DRO) and versatile tooling options.
• Durable construction with premium materials for long-lasting reliability.
• Enhanced safety features and comprehensive accessories included for convenience.

FEATURES:

• One-piece cast iron base for vibration absorption.
• Large 3-1/8″ bore spindle for powerful machining.
• Hardened and ground bed ways for smooth operation.
• Integrated Newall DP700 DRO for real-time measurement feedback.
• Four-way tool post and T-slotted compound slide for versatile machining operations.
