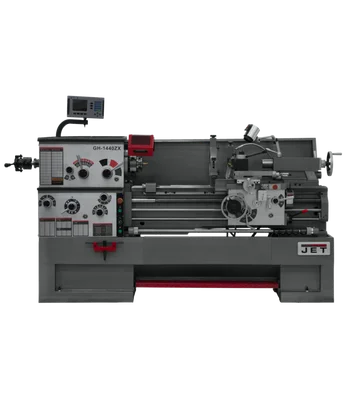

Jet GH-1440ZX Lathe w/ACU-RITE 203 DRO Taper & Collet Closer (321569)

Description

The Jet GH-1440ZX Lathe w/ACU-RITE 203 DRO Taper & Collet Closer (321569) delivers exceptional power, precision, and efficiency for your metalworking projects. This robust lathe tackles demanding tasks with its 7.5 HP, 3-phase motor and large 3-1/8″ bore spindle supported by a combination of tapered and ball bearings for maximum stability. The one-piece cast iron base absorbs vibrations during operation, providing a solid foundation for heavy cuts and maintaining machining accuracy. High-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground for smooth travel of the carriage.

KEY FEATURES AND BENEFITS:

• Effortless Threading and Gear Changes: Universal gearbox allows various thread types (inch, metric, diametral, and module pitch) without manual gear changes. ACU-RITE 203 DRO ensures accurate measurements.
• Built for Stability and Rigidity: One-piece cast iron base absorbs vibrations, ensuring stability during heavy cuts. Hardened and ground bed ways provide smooth carriage travel.
• Designed for Versatility and Productivity: 14″ swing over bed and 23-5/8″ swing through the gap accommodate large diameter workpieces. Removable gap enhances flexibility. Five-position automatic carriage stops enhance productivity.

SPECIFICATIONS:

• Swing: 14″ swing over bed, 23-5/8″ swing through gap
• Distance Between Centers: [Not specified]
• Spindle Bore: 3-1/8″
• Motor: 7.5 HP, 3-phase electric motor
• Threading Capabilities: Inch, metric, diametral, module pitch threads
• Additional Features: ACU-RITE 203 DRO, taper & collet closer

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1440ZX Lathe:

1. Ensure proper setup and safety precautions are in place.
2. Utilize the universal gearbox for seamless threading adjustments.
3. Secure the workpiece using the provided chucks or collet closer.
4. Maintain smooth operation with regular lubrication and utilize the Turcite-B on bed sliding surfaces.
5. Take advantage of the removable gap for handling large diameter workpieces.

BENEFITS OF USING Jet GH-1440ZX Lathe w/ACU-RITE 203 DRO Taper & Collet Closer (321569):

• Exceptional power and precision for demanding metalworking applications.
• Accurate measurements with ACU-RITE 203 DRO and versatile threading capabilities.
• Stability and rigidity with a one-piece cast iron base and hardened bed ways.
• Enhanced productivity with features like five-position automatic carriage stops.

FEATURES:

• Large 3-1/8″ bore spindle supported by tapered and ball bearings.
• Chrome molybdenum headstock gears for durability.
• Turcite-B on bed sliding surfaces for smooth operation.
• T-slotted compound slide with quick-change tool post for rapid tool changes.
• Fully integrated coolant system for efficient chip removal.
• Large, easy-to-use foot brake for convenient speed control.
• Articulating LED work lamp for optimal illumination.
• Centrally located controls with jog button for user-friendly operation.
• Includes standard equipment: 10” 3-jaw scroll chuck, 5-piece quick change tool post set, follow rest, large capacity steady rest, and more.
