Description

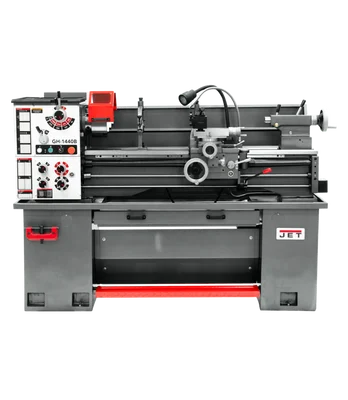

The Jet GH-1440B with Newall DP500 & Taper Attachment (323448) is a versatile and powerful machine tool designed for smooth, quiet operation and user-friendliness. It’s ideal for workshops, vocational schools, and professional machinists.
KEY FEATURES AND BENEFITS:
- Precision and Durability: Features include precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel gears for long-lasting performance and accurate results.
- Safety First: Equipped with a footbrake, emergency stop button, and a unique chuck key docking station that prevents accidental startup without the key securely docked.
- Versatility for Various Projects: Offers a wide range of threading and feed capabilities in both inch and metric with minimal gear changes. The gap bed section allows handling of larger diameter workpieces.
- User Comfort and Control: Cast iron stand with integrated footbrake for easy operation. Enclosed gearbox design minimizes noise. Adjustable gibs on the carriage and slideways ensure precise control.
- Newall DP500 Digital Readout (DRO): Provides digital position readout on the carriage and cross slide for enhanced accuracy.
- Taper Attachment: Enables turning tapered workpieces.
SPECIFICATIONS:
- Swing over bed: 14″
- Swing over cross slide: 8″
- Swing through gap: 20″
- Distance between centers: 36-7/8″
- Spindle bore: 2″
- Number of spindle speeds: 8
- Spindle speed range: 70-1900 RPM
- Number of longitudinal/cross feed rates: 32/32
- Longitudinal feed range: 0.002 – 0.0548 IPR
- Cross feed range: 0.007 – 0.0187 IPR
- Number of inch threads: 34
- Inch thread range: 4-56 TPI
- Number of metric threads: 26
- Metric thread range: 0.4-7 mm
- Motor: 3 HP, 230V, single phase
- Weight: 1753 lbs
HOW TO USE:
- Setup: Secure the lathe on a level and stable surface. Install the desired chuck and tooling based on your project requirements.
- Material Preparation: Ensure your workpiece is properly sized and secured between the chuck and tailstock center.
- Power On and Speed Selection: Turn on the lathe and choose the appropriate spindle speed for your material and desired cutting operation.
- Cutting: Engage the carriage feed and move the cutting tool against the rotating workpiece to begin machining. The Newall DRO system (if included) will help you monitor and achieve precise cuts.
- Safety: Always wear safety glasses and appropriate attire while operating the lathe.
BENEFITS OF USING Jet GH-1440B with Newall DP500 & Taper Attachment (323448):
- Precision Machining: Delivers accurate results with its high-quality construction and digital readout system (if included).
- Versatility: Handles a wide range of projects with its various threading and feed capabilities, gap bed design, and taper attachment.
- User-Friendly Features: Designed for ease of use with a comfortable control layout and safety features.
- Quiet Operation: Enclosed gearbox minimizes noise for a more pleasant work environment.
- Durability: Built with robust materials to ensure long-lasting performance.
FEATURES:
- Precision induction hardened ground bed-ways
- Spindle roller bearings
- High-quality steel gears in headstock
- Patented electronic chuck key docking station
- Heavy-duty stand with built-in footbrake
- Enclosed gearbox design
- Gap bed section
- Adjustable gibs on carriage and slideways
- Wide range of threading and feed capabilities (inch & metric)
- Taper attachment (included)
