Description

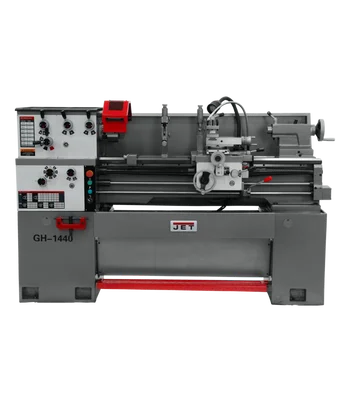

Jet GH-1440-3 Lathe with Collet Closer (323400) is a powerful and precise geared head engine lathe designed for professional machinists and demanding workshops. Built to withstand heavy-duty use, this lathe boasts a rigid one-ton construction, hardened bedways, and precision-ground components for long-lasting accuracy and performance. With its 40-inch distance between centers, gap bed section, and 3 HP motor, it handles a wide range of turning tasks with ease.
KEY FEATURES AND BENEFITS:
- Precision Engineering: Induction-hardened and ground V-way bed, precision-ground D1-4 spindle, and hardened steel gears ensure exceptional accuracy and longevity.
- Durability: Heavy-duty cast iron construction and high-quality components provide exceptional stability and resistance to wear.
- Smooth and Quiet Operation: Enclosed gearbox design, standard coolant system, and lead screw cover minimize noise and vibration for a comfortable working environment.
- Enhanced Safety: Electronic chuck key docking station prevents startup without the key, and chuck guard offers additional protection.
- Versatility: Independent lead screw and feed rod, inch-metric dials, and 40 thread/feed options for both inch and metric threading.
- User-Friendly: Spindle jog button, front-mounted controls, and apron-mounted spindle actuation for convenient operation.
SPECIFICATIONS:
- Swing Over Bed: 14 inches
- Swing Over Cross Slide: 8-1/5 inches
- Distance Between Centers: 40 inches
- Spindle Bore: 1-1/2 inches
- Spindle Mount: D1-4
- Spindle Taper: MT-5
- Spindle Speed Range: 40-1800 RPM
- Horsepower: 3 HP
- Motor Phase: 3 PH
- PreWired Voltage: 230V
HOW TO USE:
- Preparation: Ensure the lathe is properly leveled and securely anchored to the floor. Install the chuck or faceplate and the desired tooling.
- Workpiece Setup: Securely mount the workpiece in the chuck or between centers.
- Tool Selection: Choose the appropriate cutting tool for the desired operation (e.g., turning, facing, threading).
- Speed and Feed Selection: Refer to the lathe’s manual or a machining reference chart to determine the correct spindle speed and feed rate for the material and operation.
- Operation: Engage the feed and carefully approach the workpiece with the cutting tool. Monitor the cutting process and adjust as needed.
- Safety: Always wear safety glasses and appropriate clothing. Keep hands and loose objects away from rotating parts. Use the chuck guard when possible.
BENEFITS OF USING THE Jet GH-1440-3 Lathe with Collet Closer (323400):
- Increased Productivity: Powerful motor and rigid construction enable efficient material removal and faster machining times.
- Improved Accuracy: Precision components and backlash elimination ensure precise cuts and consistent results.
- Enhanced Safety: Safety features like the chuck key docking station and chuck guard help prevent accidents.
- Versatility: Wide range of threading and feed options, plus gap bed design, accommodate various workpiece sizes and materials.
- User-Friendly Operation: Intuitive controls and ergonomic design make the lathe easy to use, even for less experienced operators.
FEATURES:
- Backlash elimination on compound and cross slide
- Front removable chip tray
- Full-length splash guard
- Inch-metric dials
- Independent lead screw and feed rod
- Safety on/off switch
- Spindle actuation control on the apron
- Spindle jog button
- Splined shafts (not keyed)
- Tailstock offset for taper turning
- Electronic chuck key docking station
- Chuck guard
- Foot brake
