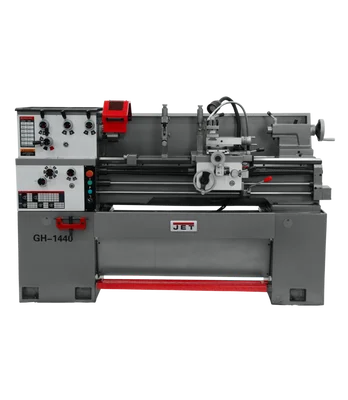

Jet GH-1440-3 Lathe With ACU-RITE 203 DRO (323403)

Description

Jet GH-1440-3 Lathe With ACU-RITE 203 DRO (323403) is a heavy-duty machine tool designed for precision metalworking. Built with a robust frame and high-quality components, this lathe offers exceptional performance and durability.

KEY FEATURES AND BENEFITS:

• Precision Ground Bed-Ways: Ensure accurate and smooth tool movement.
• Spindle Roller Bearings: Provide high-speed operation and reduced vibration.
• Hardened Steel Gears: Deliver long-lasting durability and efficient power transmission.
• Enclosed Gearbox: Protects internal components from debris and coolant while reducing noise.
• ACU-RITE 203 DRO: Offers precise measurements and control for improved accuracy.
• Safety Features: Include emergency stop, chuck guard, and electronic chuck key docking station for operator protection.

SPECIFICATIONS:

• Swing over bed: 14 inches
• Swing over cross slide: 8-1/5 inches
• Swing through gap: 20 inches
• Distance between centers: 40 inches
• Spindle bore: 1-1/2 inches
• Spindle mount: D1-4
• Number of spindle speeds: 12
• Range of spindle speeds: 40-1800 RPM
• Motor: 3 HP, 3-phase
• Weight: 2336 pounds
• Dimensions (L x W x H): 74-4/5 x 28 x 46 inches
• For complete specifications, please refer to the product manual.

HOW TO USE:

• Set up the lathe: Ensure the lathe is securely mounted on a stable base and properly leveled. Connect to a power source.
• Mount workpiece: Secure the workpiece to the lathe chuck or faceplate using appropriate clamping methods.
• Select spindle speed: Choose the appropriate spindle speed based on the material and desired cutting conditions.
• Engage feed or threading: Select the desired feed or thread pitch using the gearbox and feed controls.
• Operate controls: Use the control panel to start and stop the spindle, engage feeds, and control other functions.
• Monitor cutting process: Observe the cutting process and make adjustments as needed to maintain desired results.
• Coolant application: Apply coolant to the cutting tool for improved tool life and chip removal.
• Safety precautions: Always wear appropriate safety gear, such as safety glasses and hearing protection. Follow safety guidelines provided in the operator’s manual.

BENEFITS OF USING Jet GH-1440-3 Lathe With ACU-RITE 203 DRO (323403):

• Precise and accurate machining capabilities
• Durable construction for long-lasting performance
• Efficient operation with powerful motor and gearbox
• Improved productivity with ACU-RITE DRO
• Enhanced safety with multiple safety features
• Versatile for various metalworking applications

FEATURES:

• Geared head design
• Precision ground bed-ways
• Spindle roller bearings
• Hardened steel gears
• Enclosed gearbox
• ACU-RITE 203 DRO
• Safety features
• Coolant system
• Electronic chuck key docking station
• Gap bed section
• Inch-metric dials
• Compound and cross slide backlash elimination
• Tailstock offset for turning tapers
• Spindle jog button
• Full length splash guard
• Standard accessories
