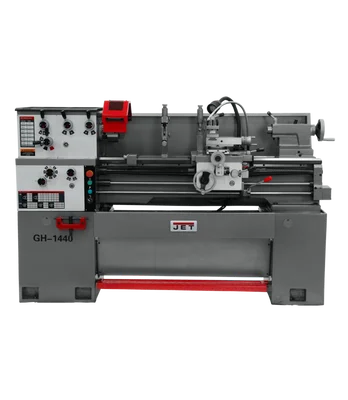

Jet GH-1440-1 Lathe with Taper Attachment and Collet Closer (323373)

Description

Jet GH-1440-1 Lathe with Taper Attachment and Collet Closer (323373) is a heavy-duty geared head engine lathe designed for both professional machinists and dedicated hobbyists. Weighing over a ton, this robust machine ensures stability and dampens vibrations for exceptional machining accuracy. With a 14″ swing over bed and 40″ distance between centers, it accommodates a wide range of workpieces. The inclusion of a taper attachment and collet closer further expands its capabilities, making it a versatile tool for various metalworking projects.

KEY FEATURES AND BENEFITS:

• Precision: Induction hardened and ground bedways, precision-ground spindle, and high-quality hardened steel gears ensure long-lasting accuracy and durability.
• Performance: The enclosed gearbox, standard coolant system, and lead screw cover contribute to smooth, quiet operation and optimal performance.
• Safety: The electronic chuck key docking station prevents machine startup unless the key is safely docked, prioritizing user safety.
• Versatility: The included taper attachment and collet closer enable you to perform a wider variety of machining tasks, expanding your creative possibilities.
• Durability: Built with heavy-duty components and weighing over a ton, this lathe is designed to withstand the rigors of regular use.

SPECIFICATIONS:

• Swing over bed: 14 inches
• Swing over cross slide: 8-1/5 inches
• Distance between centers: 40 inches
• Spindle bore: 1-1/2 inches
• Spindle speeds: 40-1800 RPM
• Number of inch threads: 40
• Number of metric threads: 23
• Motor: 3 HP, 230V, 1PH

HOW TO USE:

1. Preparation: Ensure the lathe is properly leveled and the workpiece is securely mounted in the chuck or between centers.
2. Tool Selection: Choose the appropriate cutting tool for the desired operation (e.g., turning, facing, drilling).
3. Speed and Feed Selection: Consult the lathe’s manual or a machining reference to determine the correct spindle speed and feed rate for your material and tool combination.
4. Operation: Engage the power feed or manually control the carriage and cross slide to perform the desired machining operation.
5. Safety: Always wear safety glasses and follow proper safety procedures when operating the lathe.

BENEFITS OF USING THE Jet GH-1440-1 Lathe with Taper Attachment and Collet Closer (323373):

• Improved Accuracy: The precision components and rigid construction of this lathe result in more accurate machining results.
• Increased Productivity: The powerful motor and versatile tooling options allow you to complete projects faster and more efficiently.
• Enhanced Safety: The electronic chuck key docking station and other safety features prioritize user safety during operation.
• Expanded Capabilities: The included taper attachment and collet closer open up a wider range of machining possibilities.

FEATURES:

• Induction hardened and ground V-way bed
• Precision ground D1-4 spindle with tapered roller bearings
• Independent leadscrew and feed rod
• Enclosed gearbox
• Standard coolant system
• Lead screw cover
• Electronic chuck key docking station
• Chuck guard
• Foot brake
• Emergency stop button
• Included taper attachment
• Included collet closer
