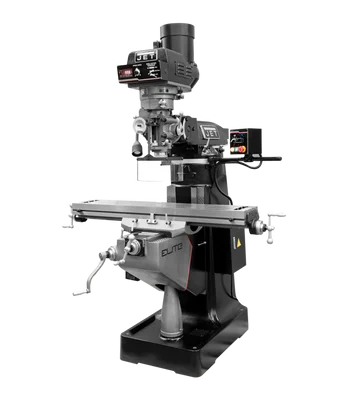

Jet EVS-949 Mill With ACU-RITE 203 DRO XYZ-Axis Powerfeed (894315)

Description

The Jet EVS-949 Mill With ACU-RITE 203 DRO XYZ-Axis Powerfeed (894315) is a feature-rich vertical milling machine designed for machinists who require precision and efficiency. It excels in diverse metalworking applications with its high-performance spindle assembly, robust construction, and user-friendly functionalities.

KEY FEATURES AND BENEFITS:

• Accuracy & Control:
  • Achieve exceptional precision with hand-scraped ways, minimal spindle runout, and an ACU-RITE 203 DRO for digital readouts (on 2 axes).
• Durability & Reliability:
  • Built to last, the mill features Meehanite castings, a hardened and ground table, and an automatic lubrication system for extended service life.
• Power & Efficiency:
  • The 3 HP motor delivers ample power for various milling tasks, while X, Y, and Z-axis powerfeeds automate movements for increased efficiency.
• Operator Convenience:
  • Variable speed control allows for material-specific adjustments, and the mounted control box provides easy access to functions.
• Safety First:
  • The mill prioritizes safety with a spindle safety guard, electronic spindle brake, and an emergency stop button for peace of mind.

SPECIFICATIONS:

• Digital Readout: Acu-Rite 203 (on 2 axes)
• Powerfeed: X, Y, Z-Axis
• Power Draw Bar: Pneumatic
• Table Size (L x W): 9 x 49 in.
• Spindle Taper: R-8
• Spindle Speeds: Electronic Variable (60 – 5,000 RPM)
• Weight: 2,300 lbs.
• Overall Dimensions: 68 x 63 x 84 in.

HOW TO USE:

1. Consult the user manual for detailed setup, operation, and maintenance instructions.
2. Ensure the machine is properly set up and powered with the appropriate electrical supply.
3. Select the appropriate cutting speed using the electronic variable speed control (60-5,000 RPM).
4. Use the ACU-RITE 203 DRO system for precise positioning of the cutting tool on 2 axes.
5. Engage the powerfeeds on the X, Y, and Z axes for automated material removal.
6. Utilize the pneumatic power drawbar for secure tool holding and quick tool changes.
7. Monitor the automatic lubrication system to ensure all components are properly lubricated.

BENEFITS OF USING Jet EVS-949 Mill With ACU-RITE 203 DRO XYZ-Axis Powerfeed (894315):

• Achieve high-precision metal parts with exceptional accuracy.
• Increase productivity and reduce operator fatigue with automated power feeds.
• Ensure operator safety with integrated safety features.
• Experience smooth operation and quiet performance.
• Handle various milling tasks with a powerful motor and ample table weight capacity.

FEATURES:

• Hand-scraped ways for smooth movements and oil retention.
• Heat-treated and polished lead screws for precise table travel.
• Stainless steel Y-axis way cover for extended protection.
• Variable speed pulleys for smooth speed transitions.
• Ball bearing motor shaft support for quiet and accurate operation.
