Jet EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO (894323)

Description

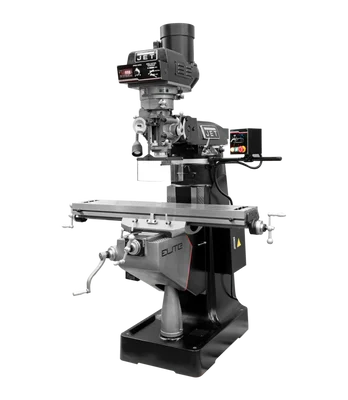

The Jet EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO (894323) is a high-performance vertical milling machine designed for precise metalworking applications.

KEY FEATURES AND BENEFITS:

• Built for Accuracy:
  • This Jet mill boasts an industry-leading spindle taper runout of 0.00012″ thanks to class 7210 precision bearings and a fully hardened Chromium Molybdenum spindle.
  • Hand-scraped ways ensure smooth table movement for optimal machining results.
• Durable Construction:
  • The Jet 894323 features a rigid Meehanite casting that retains its tolerance over time.
  • The seamless, one-piece steel quill is induction hardened and chromed for increased strength and precision.
  • A hardened and ground table provides a stable platform for workpieces.
• Automatic Lubrication System:
  • This Jet mill eliminates manual lubrication tasks with a built-in system that automatically lubricates every 30 minutes, extending machine life and reducing maintenance requirements.
• Enhanced Functionality:
  • 3-Axis ACU-RITE 203 DRO: The digital readout system provides precise positioning of the table along the X, Y, and Z axes for accurate machining.
  • Variable Speed Control: Adjust the spindle speed (60-5,000 RPM) to match the material and application for optimal cutting performance.
  • Head Movement: The head swivels 90 degrees right and left, and tilts 45 degrees forward and backward for versatile machining angles.
• Safety Features:
  • The Jet 894323 prioritizes operator safety with a spindle safety guard, emergency stop button, and CSA/CUS certification.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 203
• Table Size (L x W): 9″ x 49″
• Spindle Taper: R-8
• Quill Diameter: 3-3/8″
• Number of Spindle Speeds: Electronic Variable
• Range of Spindle Speeds (RPM): 60 – 5,000
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel: 5″
• Head Movement: 90° R & L 45° F & B
• Max Distance Spindle to Table: 18-3/4″
• Distance Spindle to Column: 21-2/5″ (Max), 6-1/2″ (Min)
• Collet Capacity: 1/8″ – 7/8″
• Table Longitudinal Travel: 36″
• Table Cross Travel: 12″
• T-Slots Number and Size: 3 – 5/8″
• T-Slot Centers: 2-1/2″
• Work Table Weight Capacity: 550 lbs
• Travel of Knee: 16″
• Travel of Ram: 14″
• Motor: 3 HP, 230V, 3-Phase
• Weight: 2,300 lbs

HOW TO USE:

1. Set up the machine on a stable and level surface.
2. Connect the machine to a suitable power supply (pre-wired for 230V operation).
3. Adjust the spindle speed using the variable speed control to match the material and application.
4. Use the X-axis powerfeed for automated and consistent table movement.
5. Refer to the ACU-RITE 203 DRO for real-time position data during operations.
6. Engage the spindle safety guard and use the emergency stop button for safety when needed.
7. Ensure regular maintenance and check the automatic lubrication system for optimal performance.

BENEFITS OF USING Jet EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO (894323):

• High-precision spindle assembly with minimal runout for strict tolerance tasks.
• Enhanced durability with heat-treated and polished lead screws, advanced double nut design, and automatic lubrication.
• Optimized efficiency with variable speed control, 3-axis DRO, and X-axis powerfeed.
• Large table and powerful motor for versatile and demanding applications.
• Comprehensive safety features including spindle safety guard and stainless steel Y-axis way cover.

FEATURES:

• Certified Meehanite castings for stability and accuracy.
• Heat-treated and polished lead screws supported by thrust bearings.
• Advanced double nut design for minimal backlash.
• Automatic lubrication system for extended machine life.
• Variable speed control for adapting to various materials.
• 3-axis ACU-RITE 203 DRO for real-time positioning.
• X-axis JET powerfeed for automated table movement.
• Stainless steel Y-axis way cover for extended protection.
• Spindle safety guard for operator safety.
• 3 HP motor for demanding tasks.
