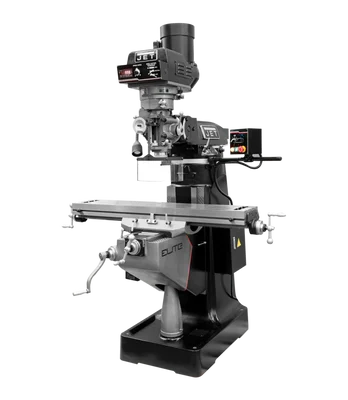

Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO XYZ Powerfeed (894364)

Description

Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO XYZ Powerfeed (894364) is a high-performance knee mill designed for precise and efficient metalworking applications. Packed with features, this mill is ideal for professional machinists, workshops, and vocational schools.

KEY FEATURES AND BENEFITS:

• Accurate Machining: Achieve tight tolerances with hand-scraped ways, precision bearings, and minimal spindle runout.
• Durable Construction: Built to last with Certified Meehanite castings, hardened components, and automatic lubrication.
• Operator Safety: Electronic spindle brake, safety guard, and CSA/CUS certification prioritize user well-being.
• Increased Efficiency: 3-axis DRO for position readout, X, Y, Z-axis power feeds for automated movement, USA-made power drawbar, and variable speed control enhance workflow.
• Smooth Operation: Stainless steel way cover, double nut design for backlash control, and balanced pulleys contribute to a refined user experience.

SPECIFICATIONS:

• Table size: 9 x 49 inches
• Spindle taper: R8
• Spindle speed range: 60 – 5,000 RPM
• Quill travel: 5 inches
• Motor: 3 HP, 230V, 3-Phase
• Weight: 2,300 lbs

HOW TO USE:

1. Installation: Following the user manual, secure the mill to a stable and level surface. Ensure proper electrical connections for 230V, 3-phase power.
2. Workpiece Setup: Mount your workpiece securely to the mill table using clamps or a vise. Ensure proper clearance between the tool and workpiece.
3. Positioning and Speed Selection: Utilize the 3-axis DRO for precise positioning of the cutting tool. Select the appropriate spindle speed based on the material and desired cutting rate.
4. Machining: Engage the spindle and power feeds (if desired) to begin machining operations. Refer to the user manual and safety guidelines for proper operation of specific milling techniques.
5. Maintenance: Regularly clean and lubricate the mill components as per the recommended maintenance schedule.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO XYZ Powerfeed (894364):

• High-Quality Results: Achieve superior machining accuracy and finish.
• Long-lasting Performance: Durable construction ensures reliable operation for years to come.
• Safe Operation: Built-in safety features prioritize user well-being.
• Increased Efficiency: Automated features and convenient controls streamline workflows.
• Versatile Applications: Suitable for a wide range of metalworking projects.

FEATURES:

• 3-Axis Newall DP700 DRO for precise positioning
• X, Y, Z-Axis JET Powerfeeds for automated movement
• USA Made Air Draw Bar for secure toolholding
• Electronic Spindle Brake for safety
• Hardened and Ground Table for machining stability
• Variable Speed Control for optimal cutting speeds
• Certified Meehanite Castings for vibration dampening
• Stainless Steel Y-Axis Way Cover for extended protection
