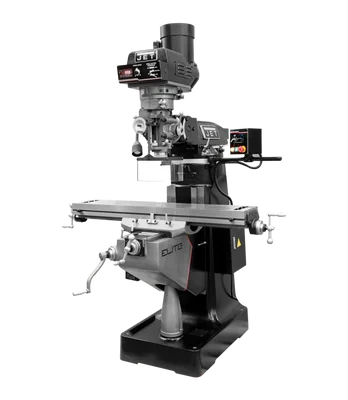

Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO XYZ Powerfeed (894363)

Description

The Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO XYZ Powerfeed (894363) is a top-of-the-line solution for professional machinists seeking exceptional precision and durability. This feature-packed machine is designed to tackle demanding projects with ease, delivering consistently accurate results.

KEY FEATURES AND BENEFITS:

• Unmatched Accuracy:
  • Minimal spindle runout (0.00012″) ensures tight tolerances for intricate work.
  • Hand-scraped ways minimize friction and improve oil retention for smooth movements.
  • Rigid Meehanite castings maintain stability and resist deflection under heavy loads.
• Built to Last:
  • Automatic lubrication system extends machine life and reduces maintenance needs.
  • Vari-disc key offers superior wear resistance compared to traditional materials.
  • Hardened and ground table provides a stable platform for various materials.
• Enhanced Operator Experience:
  • Variable speed control allows for optimal machining speeds based on the material.
  • Newall DP700 Digital ReadOut (DRO) provides precise positioning for accurate cuts.
  • Power feeds on X, Y, and Z axes streamline operation and reduce operator fatigue.
  • Electronic spindle brake enhances safety by stopping the spindle quickly.
  • Safety guard, emergency stop button, and CSA/CUS certification prioritize operator well-being.
• Additional Features:
  • Heat-treated and polished lead screws ensure smooth table travel.
  • Double nut design eliminates end-play for precise lateral movements.
  • Stainless steel Y-axis way cover offers extended protection.
  • 3 HP motor and variable speed range (60-5,000 RPM) handle diverse machining tasks.
  • Large table size (9″ x 49″) accommodates a variety of workpieces.

SPECIFICATIONS:

• Capacity: Not specified
• Spindle runout: 0.00012″
• Table size: 9″ x 49″
• Spindle taper: Not specified
• Variable speed range: 60 – 5,000 RPM
• Powerfeeds: X, Y, and Z axes
• Digital Readout: Newall DP700 (Quill)
• Motor: 3 HP
• Lead screws: Heat-treated and polished
• Overall dimensions: Not specified
• Weight: Not specified

HOW TO USE:

• Set up the milling machine on a stable surface.
• Ensure the workpiece is securely clamped onto the table.
• Turn on the machine and adjust the variable speed control to match your material and project requirements.
• Use the Newall DP700 DRO to position the spindle accurately.
• Activate the X, Y, and Z-axis powerfeeds to automate movements.
• Monitor the milling process and make adjustments as needed.
• Utilize the automatic lubrication system to maintain smooth operation.
• Use the spindle safety guard and emergency stop button to ensure operator safety.
• Press the emergency stop button in case of any unforeseen issues.

BENEFITS OF USING JET EVS-949 MILL 3-AXIS NEWALL DP700 (QUILL) DRO XYZ POWERFEED (894363):

• Achieve high-precision milling with tight tolerances.
• Enhanced positioning accuracy with the Newall DP700 DRO.
• Reduced operator fatigue and increased productivity with automated movements.
• Extended machine lifespan due to superior oil retention and lubrication.
• Increased safety features for operator protection.

FEATURES:

• Precision spindle assembly for accurate milling.
• Advanced digital readout system for precise positioning.
• Automated power feeds for effortless control.
• Durable construction with hardened and ground table.
• Enhanced oil retention and smooth operation with hand-scraped ways.
• Variable speed control for material-specific adjustments.
• Safety features including spindle guard, electronic brake, and emergency stop.
