Description

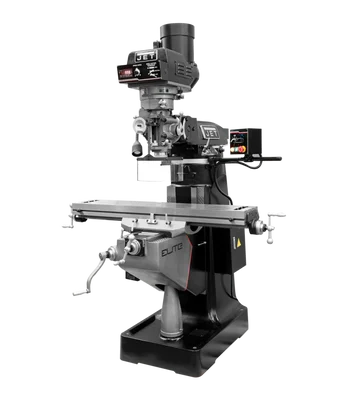

The Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO X Powerfeed (894359) is a versatile and powerful milling machine designed for those who demand precision and reliability in their machining projects. Elite, the manufacturer, focused on crafting a mill that exceeds expectations, incorporating features that enhance accuracy, durability, and operator safety.
KEY FEATURES AND BENEFITS:
- High-precision spindle assembly with industry-leading spindle taper runout of 0.00012″.
- Class 7210 (P4, ABEC-7) precision angular bearings for consistent cutting results.
- Hardened and ground components including Chromium Molybdenum spindle and one-piece steel quill.
- Hand-scraped Y and Z-axis ways for improved oil retention and smooth movement.
- Advanced double nut design eliminates backlash for precise control.
SPECIFICATIONS:
- Digital Readout: Newall DP700
- Powerfeed: X-Axis
- Table Size: 9 x 49 inches
- Spindle Taper: R-8
- Quill Diameter: 3-3/8 inches
- Spindle Speeds: Electronic Variable, 60 – 5,000 RPM
- Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 IPR
- Motor: 3 HP, 230V, 3 Phase
HOW TO USE:
Refer to the manufacturer’s manual for detailed instructions on setting up and operating the Jet 894359 EVS-949 Mill.
BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO X Powerfeed (894359):
- Enhanced precision and durability for professional results.
- User-friendly features for ease of operation.
- Safety features including spindle safety guard and electronic spindle brake.
- Compliance with CSA Group electrical requirements for added safety.
FEATURES:
- Patented Vari-Disc Key for superior wear resistance.
- Balanced pulleys minimize vibration and ensure smooth speed transitions.
- Automatic lubrication system for reduced maintenance.
- Stainless steel way cover protects Y-axis way from wear.
