Jet EVS-949 Mill 3-Axis Newall DP700(Knee) DRO Servo XY Pwrfd (894432)

Description

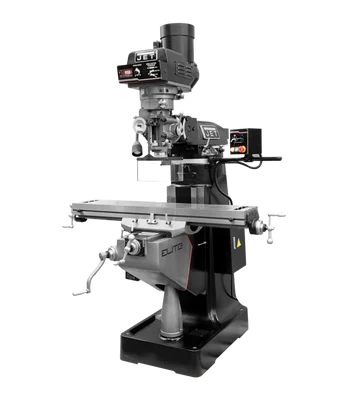

Jet EVS-949 Mill 3-Axis Newall DP700(Knee) DRO Servo XY Pwrfd (894432) is a high-precision vertical milling machine designed for accurate and efficient metalworking.

KEY FEATURES AND BENEFITS:

• Precision Machining:
  • Hand-scraped ways for smooth movement and minimal wear.
  • Class 7210 precision bearings for industry-leading spindle runout (0.00012″).
  • Newall DP700 3-axis DRO system for precise positioning.
• Efficient Operation:
  • Servo-driven X and Y axes for automated control.
  • Variable speed control for optimal cutting on various materials.
  • USA-made air-powered drawbar for fast and secure tool changes.
• Durable Construction:
  • Rigid Meehanite castings for a stable machining platform.
  • Fully hardened Chromium Molybdenum spindle for long-lasting performance.
  • Automatic lubrication system for extended machine life.
• Safe and User-Friendly:
  • Spindle safety guard and emergency stop button for operator safety.
  • Large table with a weight capacity of 550 lbs for handling diverse workpieces.
  • Easy-to-use controls and clear digital readouts.

SPECIFICATIONS:

• Digital Readout: Newall DP700 (3-axis)
• Powerfeed: Servo X-axis and Y-axis
• Drawbar: USA-made air-powered
• Table Size (L x W): 9 x 49 in.
• Spindle Taper: R-8
• Spindle Speeds: Electronic variable (60 – 5,000 RPM)
• Quill Travel: 5 in.
• Head Movement: 90° R & L, 45° F & B
• Work Table Weight Capacity: 550 lbs
• Motor: 3 HP, 230V, 3-phase
• Overall Dimensions: 68 x 63 x 84 in.
• Weight: 2,300 lbs

HOW TO USE:

To ensure optimal operation of the Jet EVS-949 Mill 3-Axis Newall DP700(Knee) DRO Servo XY Pwrfd (894432), follow these steps:

1. Installation: Following the manufacturer’s instructions, securely mount the mill on a stable and level surface. Ensure proper electrical connection (230V, 3-phase) and air supply for the drawbar.
2. Workpiece Setup: Clamp your workpiece securely to the mill table using appropriate workholding methods (vises, clamps, etc.).
3. Tooling Selection: Select the appropriate cutting tool (end mill, drill bit, etc.) based on your material and desired machining operation. Install the tool securely in the spindle using the drawbar.
4. Positioning and Programming: Utilize the DRO system to precisely position the cutting tool relative to the workpiece. If using the servo feeds, program the desired cutting path and feed rates on the mill’s control panel.
5. Machining: Engage the spindle motor and initiate the machining process. Monitor the operation and make adjustments as needed.
6. Safety: Always wear safety glasses, ear protection, and appropriate gloves while operating the mill. Utilize the emergency stop button if necessary.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700(Knee) DRO Servo XY Pwrfd (894432):

• Achieve high-precision machining results with minimal tolerances.
• Increase machining efficiency with automated features and fast tool changes.
• Experience smooth and reliable operation thanks to the durable construction and quality components.
• Ensure operator safety with a well-designed machine and proper safety practices.
• Tackle a wide range of metalworking projects with the machine’s versatility and capabilities.

FEATURES:

• Hand-scraped ways
• Class 7210 precision bearings
• Newall DP700 3-axis DRO system
• Servo-driven X and Y axes
• USA-made air-powered drawbar
• Rigid Meehanite castings
• Fully hardened Chromium Molybdenum spindle
• Automatic lubrication system
• Spindle safety guard
• Emergency stop button
• Large table with 550 lbs weight capacity
• Variable speed control
