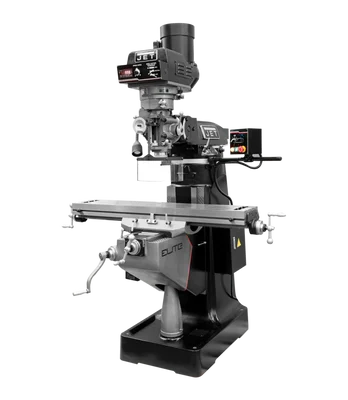

Jet EVS-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894322)

Description

Jet EVS-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894322) is a professional-grade milling machine designed to deliver exceptional accuracy and durability for demanding machining tasks. It is built with meticulous attention to detail, incorporating features that enhance precision, efficiency, and operator safety. Whether you’re working in metalworking, tool and die making, aerospace, or automotive industries, this mill offers the performance and reliability you need.

KEY FEATURES AND BENEFITS:

• High Precision: The mill’s hand-scraped ways, hardened and ground table, and Chromium Molybdenum spindle ensure consistent accuracy and tight tolerances.
• Enhanced Durability: Certified Meehanite castings, automatic lubrication, and a hardened steel quill contribute to the mill’s long service life.
• Efficient Operation: 3-axis ACU-RITE 203 DRO, X, Y, and Z-axis power feeds, and a USA-made power draw bar streamline operations and reduce operator fatigue.
• Operator Safety: CSA/CUS certification, a spindle safety guard, electronic spindle brake, and emergency stop button prioritize operator safety.

SPECIFICATIONS:

• Stock Number: JT-894322
• Collet Capacity: 1/8″ – 7/8″
• Spindle Taper: R-8
• Spindle Speed Range: 60 – 5,000 RPM (variable)
• Table Size: 9″ x 49″
• Travel (X, Y, Z): 36″, 12″, 16″
• Motor: 3 HP, 230V, 3 Ph
• Weight: 2300 lbs

HOW TO USE:

1. Setup: Securely mount the workpiece on the mill table using clamps or vises.
2. Tooling: Install the appropriate cutting tool into the spindle and tighten the drawbar.
3. DRO Setup: Zero the DRO axes and quill to establish reference points.
4. Program (Optional): If using CNC capabilities, program the desired tool paths and movements.
5. Operation: Manually or automatically control the mill’s movements to execute the machining process.
6. Monitoring: Continuously monitor the DRO for precise positioning and adjust as needed.
7. Lubrication: Ensure proper lubrication of the mill’s moving parts.

BENEFITS OF USING THE Jet EVS-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894322):

• Increased Productivity: Power feeds and DRO enhance efficiency.
• Improved Accuracy: Precise machining results due to high-quality components.
• Reduced Operator Fatigue: Automated features and ergonomic design.
• Long-Term Reliability: Durable construction and automatic lubrication.

FEATURES:

• 3-Axis ACU-RITE 203 DRO
• X, Y, Z-Axis Power Feeds
• USA-Made Power Draw Bar
• Hand-Scraped Ways
• Hardened and Ground Table
• Chromium Molybdenum Spindle
• Automatic Lubrication
• Stainless Steel Y-Axis Way Cover
• Halogen Machine Lamp
• CSA/CUS Certified
