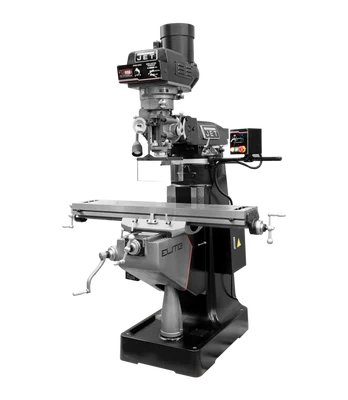

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Quill) DRO XY Powerfeed (894341)

Description

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Quill) DRO XY Powerfeed (894341) is a professional-grade milling machine designed for demanding applications. It delivers exceptional precision and durability for machining a wide range of materials, from small parts to large workpieces.

KEY FEATURES AND BENEFITS:

• PRECISION MACHINING:
  • 3-Axis Acu-Rite 303 DRO for accurate positioning on all axes.
  • Class 7210 (P4, ABEC-7) precision angular bearings for industry-leading spindle taper runout.
  • Hardened and ground table ensures smooth operation and maintains accuracy over time.
• ENHANCED PRODUCTIVITY:
  • X and Y-axis JET powerfeeds for automated movement, reducing operator fatigue and increasing efficiency.
• DURABLE CONSTRUCTION:
  • Certified Meehanite castings provide a rigid and stable base for vibration-free operation.
  • Fully hardened Chromium Molybdenum spindle meets strict tolerance requirements for long-lasting performance.
  • Electronic spindle brake prevents accidental startups for operator safety.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 303
• Powerfeed: X & Y-Axis
• Power Draw Bar: USA Made
• Table Size (L x W) (In.): 9 x 49
• Spindle Taper (In. x TPI): R-8
• Quill Diameter (In.): 3-3/8
• Number of Spindle Speeds: Electronic Variable
• Range of Spindle Speeds (RPM): 60 – 5,000
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90° R & L 45° F & B
• Max Distance Spindle to Table (In.): 18-3/4
• Distance Spindle to Column (Max.) (In.): 21-2/5
• Distance Spindle to Column (Min.) (In.): 6-1/2
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 36
• Table Cross Travel (In.): 12
• T-Slots Number and Size (In.): 3 and 5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 550
• Travel of Knee (In.): 16
• Travel of Ram (In.): 14
• Motor (HP): 3 HP, 230V, 3 Ph
• Ampearge Draw @ 230V 3Ph: 18
• Prewired (V.): 230
• Overall Dimensions (L x W x H) (In.): 68 x 63 x 84
• Weight (Lbs.): 2,300
• Number of Axis: 3 (Quill)
• Style (Type): Variable Speed

HOW TO USE:

The Jet 894341 EVS-949 Mill is designed for use by experienced machinists. Consult the user manual for detailed instructions on setup, operation, and safety procedures.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Quill) DRO XY Powerfeed (894341):

• Achieve highly precise cuts and mill intricate details with ease.
• Increase productivity with automated X and Y-axis movement.
• Experience smooth operation and long-lasting performance.
• Work with confidence thanks to a rigid and stable machine base.
• Ensure operator safety with features like the electronic spindle brake.

FEATURES:

• 3-Axis Acu-Rite 303 DRO
• X and Y-axis JET powerfeeds
• Certified Meehanite castings
• Electronic spindle brake
• Hardened and ground table
• Fully hardened Chromium Molybdenum spindle
• Class 7210 (P4, ABEC-7) precision angular bearings
• USA-made air draw bar (depending on model)
