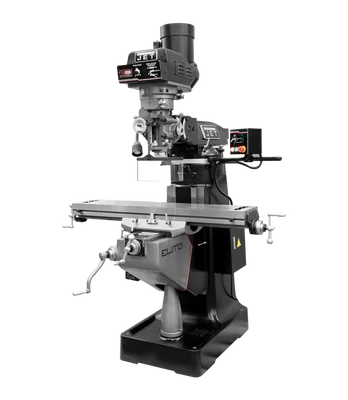

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Q) DRO Servo XYZ Pwrfd (894409)

Description

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Q) DRO Servo XYZ Pwrfd (894409) is a professional-grade milling machine designed to deliver exceptional accuracy, durability, and performance. Engineered for demanding applications, this mill combines cutting-edge technology with traditional craftsmanship to meet the needs of machinists and workshops alike.

KEY FEATURES AND BENEFITS:

• Precision Spindle: Class 7210 (P4, ABEC-7) precision angular bearings ensure industry-leading spindle taper runout of 0.00012″, guaranteeing precise milling results.
• Enhanced Durability: Hand-scraped ways, hardened surfaces, and Meehanite® castings provide exceptional rigidity and longevity, minimizing wear and tear.
• Smooth Operation: Heat-treated lead screws with thrust bearings and variable speed pulleys enable smooth and controlled movements for optimal milling precision.
• Safety First: CSA/CUS certified with spindle safety guard, electronic brake, and emergency stop button for enhanced operator safety.
• Automatic Lubrication: Consistent lubrication of critical components extends the machine’s lifespan and reduces maintenance requirements.
• Advanced Controls: 3-Axis ACU-RITE 303 Quill DRO and servo power feeds on X, Y, and Z axes offer precise measurement and effortless control.

SPECIFICATIONS:

• Table Size: 9 x 49 inches
• Spindle Taper: R-8
• Spindle Speeds: 60 – 5,000 RPM (Electronic Variable)
• Quill Travel: 5 inches
• Motor: 3 HP, 230V, 3 Phase
• Overall Dimensions: 68 x 63 x 84 inches
• Weight: 2,300 lbs

HOW TO USE:

1. Setup: Securely mount the workpiece on the mill table using clamps or vises.
2. Tool Selection: Choose the appropriate milling cutter for the desired operation and securely install it in the spindle.
3. Zeroing: Set the zero point on the DRO for each axis (X, Y, Z, and quill) using the reference points on the machine.
4. Program (Optional): If using CNC capabilities, program the desired toolpaths and movements.
5. Operation: Start the spindle and carefully engage the cutter with the workpiece. Use the handwheels or power feeds to move the table and quill for precise milling.
6. Monitoring: Regularly monitor the DRO readings and adjust speeds and feeds as needed.
7. Safety: Always wear appropriate safety gear and follow safe operating procedures.

BENEFITS OF USING THE Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Q) DRO Servo XYZ Pwrfd (894409):

• Improved Accuracy: Achieve precise milling results with industry-leading spindle runout and hand-scraped ways.
• Increased Productivity: Servo power feeds and automatic lubrication streamline operations and reduce downtime.
• Enhanced Safety: Multiple safety features prioritize operator well-being.
• Longevity: Durable construction and automatic lubrication ensure years of reliable performance.

FEATURES:

• Hand-scraped Y and Z-axis ways
• Hardened and ground table
• Meehanite® castings
• Stainless steel Y-axis way cover
• Halogen machine lamp
• Dual locks on all surfaces
