Description

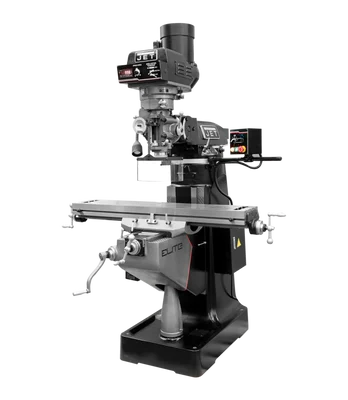

Jet EVS-949 Mill 3-Ax ACU-RITE 203 (Quill) DRO Servo XY Pwrfd (894390) is a high-performance milling machine designed for machinists who demand precision and efficiency. It boasts a robust build with Certified Meehanite castings for vibration dampening and dimensional stability. The ways are hand-scraped to a minimum of 16 points per inch, ensuring smooth operation and minimal friction.
KEY FEATURES AND BENEFITS:
- Accurate Machining: The ACU-RITE 203 Digital ReadOut (DRO) provides precise positioning for the quill, X-axis, and Y-axis, minimizing machining errors.
- Effortless Operation: Servo X and Y-axis powerfeeds automate table movement, reducing operator fatigue and improving consistency.
- Fast Tool Changes: The USA-made air-powered draw bar allows for quick and easy tool changes, minimizing downtime.
- Durable Spindle: The fully hardened Chromium Molybdenum spindle with class 7210 precision bearings delivers exceptional rigidity and minimizes deflection for accurate cuts.
- Variable Speed Control: The electronic variable speed control allows for fine-tuning spindle speed based on the material and desired outcome.
SPECIFICATIONS:
- Table size: 9″ x 49″
- Spindle taper: R-8
- Spindle speed range: 60 – 5,000 RPM
- Quill travel: 5″
- Table longitudinal travel: 36″
- Table cross travel: 12″
- Motor: 3 HP, 230V, 3-phase
- Weight: 2,300 lbs
HOW TO USE:
The Jet 894390 EVS-949 Mill is ideal for various metalworking applications, including facing, milling slots, pockets, and contours. Here’s how to use it:
- Mount the workpiece onto the table and secure it with clamps.
- Use the controls and DRO readout to position the cutting tool.
- Initiate the milling process by adjusting spindle speed and depth.
- Utilize servo feeds to automate table movements along the X and Y axes.
BENEFITS OF USING Jet EVS-949 Mill 3-Ax ACU-RITE 203 (Quill) DRO Servo XY Pwrfd (894390):
- Increased Precision: The DRO system and rigid construction ensure accurate cuts and repeatable results.
- Improved Efficiency: Servo feeds and variable speed control streamline machining processes.
- Reduced Operator Fatigue: Automated table movements minimize manual effort.
- Enhanced Durability: High-quality materials and construction ensure long-lasting performance.
- Versatility: The machine handles various milling tasks for diverse metalworking projects.
FEATURES:
- ACU-RITE 203 Digital ReadOut (DRO)
- Servo X and Y-axis Powerfeeds
- USA-made Air-powered Draw Bar
- Certified Meehanite Castings
- Hand-scraped Ways
- Electronic Variable Speed Spindle
- Hardened and Ground Table
- Automatic Lubrication System
- Stainless Steel Y-Axis Way Cover
