Description
The Jet EVS-1440B EVS Lathe w/Acu-Rite 203 DRO & Collet Closer (311446) is a professional-grade electronic variable speed lathe designed to deliver exceptional precision and versatility in your machining projects. With a 14″ swing over bed and 40″ between centers, it accommodates a wide range of workpiece sizes, while the powerful 3 HP motor ensures ample power for even the most demanding tasks. The included Acu-Rite 203 DRO and collet closer further enhance precision and efficiency.
KEY FEATURES AND BENEFITS:
- Electronic Variable Speed (EVS): Easily adjust the spindle speed from 40 to 2000 RPM to match the specific material and operation, ensuring optimal cutting results.
- Acu-Rite 203 DRO: Achieve precise measurements and repeatability with the digital readout, streamlining your workflow and minimizing errors.

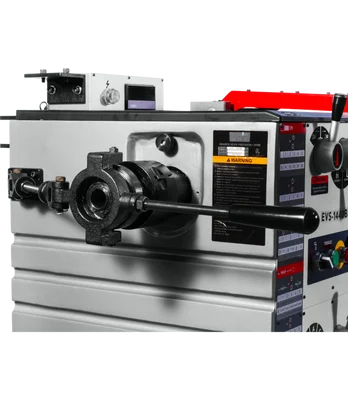

- Collet Closer: Quickly and securely change tools without the need for a chuck key, saving time and increasing productivity.
- Robust Construction: The Meehanite cast iron bed and induction hardened V-ways provide exceptional stability and vibration dampening for long-lasting accuracy.
- Precision Spindle: The D1-4 camlock spindle is precision-ground and supported by high-quality bearings, ensuring minimal runout for smooth and accurate turning.
- Safety Features: Equipped with an emergency stop button, chuck guard, and foot brake for enhanced operator safety.
SPECIFICATIONS:
- Swing Over Bed: 14″
- Swing Over Cross Slide: 9-1/16″
- Distance Between Centers: 40″
- Spindle Bore: 1-1/2″
- Spindle Mount: D1-4
- Spindle Speeds: 40-2000 RPM
- Motor: 3 HP, 230/460V, 3Ph
- Overall Dimensions: 68.5″ L x 28.3″ W x 50″ H
- Weight: 1584 lbs
HOW TO USE:
- Preparation: Ensure the lathe is properly leveled and securely mounted. Install the chuck or desired workholding device.
- Workpiece Setup: Securely mount the workpiece in the chuck or between centers.
- Tool Selection: Choose the appropriate cutting tool for the desired operation.
- Speed and Feed Selection: Consult machining charts or references to determine the optimal spindle speed and feed rate for your material and tool.
- Operation: Engage the spindle and feed using the appropriate controls. Monitor the cutting process and adjust as needed.
- Measurement: Utilize the DRO to monitor and adjust tool position for precise results.
- Tool Changes: Use the collet closer to quickly change tools as needed.
- Shutdown: Turn off the lathe and remove the workpiece when finished.
BENEFITS OF USING THE Jet EVS-1440B EVS Lathe w/Acu-Rite 203 DRO & Collet Closer (311446):
- Increased productivity: Fast and efficient tool changes, precise speed control, and accurate measurements streamline your workflow.
- Improved accuracy: The DRO and precision spindle minimize errors and enhance repeatability.
- Versatility: Accommodates a wide range of workpiece sizes and materials, suitable for various projects.
- Durability: Robust construction and quality components ensure long-lasting performance and accuracy.
- Enhanced Safety: Multiple safety features protect the operator during use.
FEATURES:
- Induction hardened and ground V-way bed
- Splined shafts for smooth power transmission
- Independent leadscrew and feed rod
- Adjustable gibs for backlash elimination
- Class 7 precision taper roller bearings
- Meehanite cast iron construction
- Integrated locking tool storage cabinet
- LED RPM readout
- Full-length splash guard
