Description

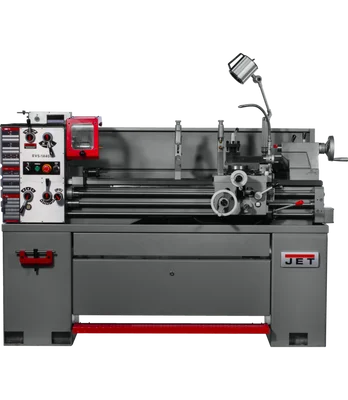

Jet EVS-1440 3HP Variable Speed Lathe With Newall DP700 DRO (311448) is a heavy-duty machine designed for professional turning and metalworking applications. It boasts a powerful 3HP motor with variable speed control (40-2000 RPM) for tackling a wide range of materials and project requirements.
KEY FEATURES AND BENEFITS:
- Precision and Accuracy: The D1-4 spindle is precision ground for minimal runout (0.0004″) and supported by high-quality bearings for exceptional accuracy.
- Variable Speed Control: The electronic variable speed motor allows for optimal control during various machining operations.
- Digital ReadOut (DRO): The Newall DP700 DRO system provides precise positioning of the cutting tool for enhanced control and repeatability.
- Rigid Construction: The Meehanite castings ensure a stable and vibration-dampening base for smooth operation.
- Versatility: The two-speed gearbox offers low and high-speed ranges, while the gap bed design accommodates larger diameter workpieces.
- User-Friendly Features: The LED RPM readout displays precise speed information, while the adjustable gibs compensate for slideway wear for continued precision.
- Safety Features: The lathe includes a safety on/off switch, emergency stop button, and a full-length splash guard for operator safety.
SPECIFICATIONS:
- Swing Over Bed: 14 in.
- Swing Over Cross Slide: 9-1/16 in.
- Swing Through Gap: 19-1/2 in.
- Spindle Speeds: Variable (40-2000 RPM)
- Spindle Motor: 3HP, 230/460V, 3-Phase
- Spindle Taper: D1-4 with MT-5 Sleeve
- Bed Width: 7.48 in.
- Overall Dimensions: 68.5 x 28.3 x 50 in.
- Weight: 1320 lbs. (net), 1584 lbs. (gross)
HOW TO USE:
- Installation: Following the manufacturer’s instructions, securely position the lathe on a level and stable surface. Ensure proper electrical connection for the 3-phase power requirement.
- Workpiece Setup: Mount your workpiece securely in the chuck or between centers, depending on the machining operation.
- Speed Selection: Choose the appropriate spindle speed based on the material and diameter of your workpiece. Refer to machining charts for recommended speeds.
- Tool Selection: Select the appropriate cutting tool for your desired operation (turning, facing, etc.). Ensure proper tool geometry and sharpness.
- Machining: Engage the spindle and begin machining your workpiece. Utilize the carriage, cross slide, and compound slide to control the tool path and achieve your desired dimensions.
- Safety: Always wear safety glasses and appropriate attire while operating the lathe. Be mindful of pinch points and rotating parts. Utilize the emergency stop button if necessary.
BENEFITS OF USING Jet EVS-1440 3HP Variable Speed Lathe With Newall DP700 DRO (311448):
- Increased Productivity: The variable speed control and powerful motor allow for efficient machining of various materials.
- Enhanced Accuracy: The precision-ground spindle, DRO system, and rigid construction ensure accurate results.
- Versatility: The lathe’s wide range of features and capabilities accommodate a diverse range of metalworking projects.
- Durability: The high-quality construction ensures long-lasting performance and reliable operation.
- User-Friendly Operation: The intuitive controls, LED readouts, and adjustable features make the lathe user-friendly for both experienced machinists and hobbyists.
FEATURES:
- 3HP Variable Speed Electronic Motor (40-2000 RPM)
- D1-4 Spindle with High-Precision Taper Bearings (Runout: 0.0004″)
- Newall DP700 Digital ReadOut (DRO) System
- Two-Speed Gearbox for Low and High-Speed Machining
- Meehanite Cast Iron Bed for Rigidity and Stability
- Gap Bed Design for Large Diameter Workpieces
- Independent Leadscrew and Feed Rod for Precise Control
- Adjustable Gibs for Slideway Wear Compensation
- LED RPM Readout for Precise Speed Monitoring
- Spindle Actuation Control for Easy Gear Changes
