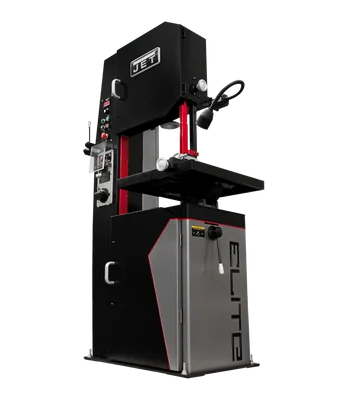

Jet EVBS-20 230V 3PH 2HP 20-Inch Vertical Bandsaw (891100)

Description

Jet EVBS-20 230V 3PH 2HP 20-Inch Vertical Bandsaw (891100) is designed for precision cutting of ferrous and non-ferrous metals, as well as wood and plastics. It’s ideal for professional and serious home workshops thanks to its robust build quality and versatile features.

KEY FEATURES AND BENEFITS:

• Powerful and balanced: 2 HP motor provides ample power for tough cuts, while the heavy-duty steel frame ensures stability.
• Variable speed control: Fine-tune blade speed (50-5000 SFPM) for optimal cutting based on the material.
• Precision cutting:
  • Precision-balanced cast iron blade wheels transmit power smoothly.
  • Precisely ground articulating table tilts 10° left and 45° right for bevel cuts.
  • Tungsten carbide blade guides with precision bearings enhance accuracy and blade life.
• User safety:
  • Built-in chip blower keeps the cutting area clear.
  • Easily adjustable blade guard provides protection.
  • CSA-certified design meets safety standards.
• Standard equipment: Includes a bi-metal blade, work lamp, rip fence, and chip pan for immediate use.

SPECIFICATIONS:

• Height Capacity (Max.): 13 in.
• Throat Capacity: 20 in.
• Blade Length: 1/4 x .025 x 151-1/2 in.
• Blade Width: 1/8 – 1 in.
• Blade Speeds: Variable 50-5000 SFPM
• Table Size: 24 x 22 in.
• Table Height: 39-3/8 in.
• Table Tilt: 10° left & 45° right
• Motor: 2 HP, 230V, 3-Phase
• Weight: 1102 lbs.

HOW TO USE:

1. Assembly: Refer to the manufacturer’s instructions for proper assembly.
2. Blade selection: Choose a blade appropriate for the material you’re cutting, considering factors like tooth count and material thickness.
3. Adjustments: Set the blade speed based on the material and desired cut quality. Ensure the blade tension is correct and the table is positioned for your cut (straight or beveled).
4. Material placement: Secure the material to the worktable using clamps.
5. Cutting: Power on the saw and begin cutting with a steady, controlled motion. The chip blower will help clear debris from the cutting line.
6. Safety: Always wear safety glasses, gloves, and ear protection while operating the bandsaw.

BENEFITS OF USING Jet EVBS-20 230V 3PH 2HP 20-Inch Vertical Bandsaw (891100):

• Precise cuts: Delivers clean and accurate cuts in various materials.
• Versatility: Handles a wide range of materials from metal to wood.
• Variable speed control: Optimizes cutting for different materials and thicknesses.
• Durable construction: Built to last with a heavy-duty steel frame and high-quality components.
• User-friendly features: Easy blade changes, adjustable table, and built-in safety measures.

FEATURES:

• 2 HP motor
• Variable speed control (50-5000 SFPM)
• Precision balanced cast iron blade wheels
• Precisely ground articulating table (10° left & 45° right tilt)
• Built-in chip blower
• Easily adjustable blade guard
• Tungsten carbide blade guides
• Handwheel with blade tension gauge
• 4.2 KVA bi-metal blade welder
• CSA-certified
