Jet ETM-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894121)

Description

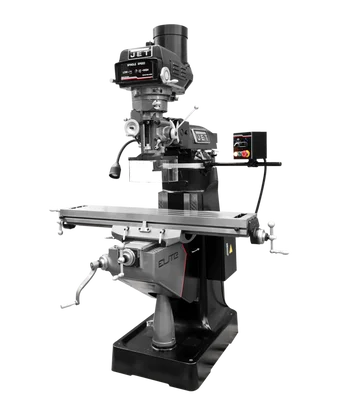

The Jet ETM-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894121) is a testament to Jet’s commitment to precision, durability, and performance. Engineered to meet the rigorous demands of industrial settings, this mill offers a robust set of features designed to enhance accuracy, control, and longevity.

KEY FEATURES AND BENEFITS:

• Unparalleled Precision: At the heart of the ETM-949 is a high-precision spindle assembly, featuring class 7210 (P4, ABEC-7) angular bearings. This advanced design achieves an industry-leading spindle taper runout of 0.00012″, ensuring exceptional accuracy and smooth operation. The Chromium Molybdenum spindle is fully hardened and precision ground, further contributing to its exceptional performance.
• Engineered for Durability: Jet has gone the extra mile to ensure the ETM-949’s longevity. Hand-scraped Y and Z-axis ways (minimum 16 points per square inch) provide greater oil retention and smoother movements, minimizing wear and tear. Certified Meehanite® castings maintain their tolerances and rigidity, ensuring the mill remains accurate and reliable even after years of use.
• Enhanced Control and Safety: The ETM-949 is equipped with 3-axis ACU-RITE 203 DRO (Digital Read Out) and X, Y, Z-axis power feeds, providing operators with precise control over every movement. An advanced double nut design eliminates backlash for accurate lateral control, and heat-treated lead screws with thrust bearings ensure smooth, incremental table movements.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 203
• Powerfeed: X, Y, Z-Axis
• Table Size (L x W): 9 x 49 inches
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Spindle Speeds: Variable, 60 – 4,500 RPM
• Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 IPR
• Travels: Spindle (5 in), Head (90° R&L, 45° F&B), Table Longitudinal (36 in), Table Cross (12 in), Knee (16 in), Ram (14 in)
• Motor: 3 HP, 230/460V, 3 Ph
• Overall Dimensions (L x W x H): 68 x 63 x 84 inches
• Weight: 2420 lbs

HOW TO USE:

1. Ensure the mill is securely mounted and all safety features are engaged.
2. Set up the 3-axis ACU-RITE 203 DRO for precise monitoring of machining operations.
3. Utilize the X, Y, Z-axis power feeds to automate feed rates and reduce operator fatigue.
4. Activate safety features including the spindle safety guard, electronic spindle brake, and emergency stop button.
5. Maintain optimal operation with the automatic lubrication system.
6. Monitor stability and precision during machining tasks.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACURITE 203 (Quill) DRO XYZ Powerfeed (894121):

• Exceptional precision with industry-leading spindle taper runout.
• Durable construction with hand-scraped ways and Certified Meehanite® castings.
• Enhanced control and safety features for precise and secure machining operations.
• Efficient operation with 3-axis DRO and X, Y, Z-axis power feeds.
• Wide range of capabilities suitable for industrial machining applications.

FEATURES:

• High-precision spindle assembly with class 7210 (P4, ABEC-7) angular bearings.
• Chromium Molybdenum spindle, fully hardened and precision ground.
• Hand-scraped Y and Z-axis ways for smoother movements and better oil retention.
• 3-axis ACU-RITE 203 DRO for precise measurement and control.
• X, Y, Z-axis power feeds for automated feed rates.
• Certified Meehanite® castings for durability and stability.
• Safety features including spindle safety guard, electronic spindle brake, and emergency stop button.
• Automatic lubrication system for maintenance.
