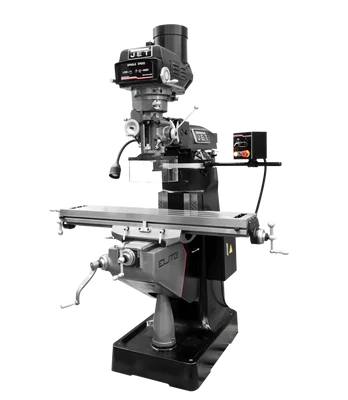

Jet ETM-949 Mill 3-Axis ACURITE 203(Knee) DRO Servo XYZ Pwrfd (894197)

Description

Jet ETM-949 Mill 3-Axis ACURITE 203(Knee) DRO Servo XYZ Pwrfd (894197) is a premium milling machine designed for professional machinists and workshops seeking precision, durability, and advanced features. Built with world-class engineering, the ETM-949 boasts a rigid Meehanite casting base that minimizes deflection during heavy-duty milling.

KEY FEATURES AND BENEFITS:

• Precision Engineering:
  • High-precision class 7210 (P4, ABEC-7) angular bearings
  • Industry-leading spindle taper runout of 0.00012″
  • Chromium Molybdenum spindle, fully hardened and ground
• Smooth Operation and Control:
  • Hand-scraped ways on Y and Z-axis for superior oil retention
  • Induction hardened and chromed one-piece steel quill
  • Heat-treated and polished lead screws with thrust bearing support
  • Advanced double nut design eliminates backlash
• Effortless Operation:
  • Servo X, Y, and Z-Axis powerfeeds for controlled milling
  • 3-axis ACU-RITE 203 DRO for real-time position data
  • Variable speed motor (60-4,500 RPM) adapts to various materials
• Durability and Safety:
  • Variable speed pulleys ground and balanced for minimal vibration
  • Ball bearing supported motor shaft for quiet operation
  • Spindle safety guard and emergency stop button for operator safety
  • CSA certified for electrical safety

SPECIFICATIONS:

• Table Size: 9″ x 49″
• Spindle Taper: R-8
• Spindle Speeds: 60 – 4,500 RPM (Variable)
• Motor: 3 HP, 230V, 3-phase
• Overall Dimensions: 68″ x 63″ x 84″
• Weight: 2,300 lbs

HOW TO USE:

1. Securely set up the mill and calibrate the ACURITE 203 DRO for precise positioning.
2. Utilize the Servo X, Y, and Z-Axis powerfeeds for automated table movements.
3. Adjust the variable speed control to match cutting speeds with your material.
4. Maintain regular intervals for automatic lubrication to ensure smooth operation.
5. Always adhere to safety protocols, including using the spindle guard and emergency stop button.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACURITE 203(Knee) DRO Servo XYZ Pwrfd (894197):

• Top-of-the-line precision and durability
• Advanced features for versatile milling applications
• Enhanced user safety with built-in safeguards

FEATURES:

• Includes high-precision spindle with ABEC-7 bearings
