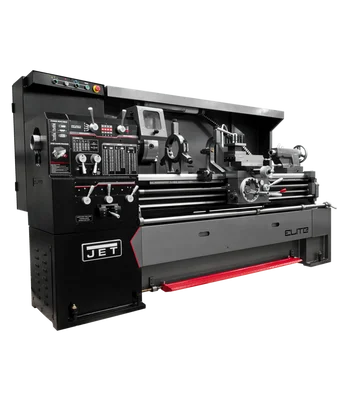

Jet EGH-1740 Lathe With Newall DP700 DRO (892511)

Description

The Jet EGH-1740 Lathe With Newall DP700 DRO (892511) is a robust and precise machine tool designed for efficient metalworking. Built with durability and accuracy in mind, this lathe is perfect for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Robust Construction: Meehanite castings ensure the lathe’s stability and longevity, providing a solid foundation for precise machining.
• Precision Engineering: Turcite-B coatings on the bed and carriage minimize friction, enhancing smooth and accurate movement. Hardened and ground components reduce vibration and deflection for superior performance.
• Versatility: The universal gearbox allows for a wide range of threading options without requiring gear changes, increasing efficiency and productivity.
• Safety Features: An enclosed coolant system, nylon safety gears, and overload protection mechanisms prioritize operator safety and machine protection.
• User-Friendly Design: CNC-style lighting, a front-facing chip pan, and easy maintenance contribute to a comfortable and efficient operating experience.
• Digital Precision: The Newall DP700 DRO provides accurate measurements and control for precise machining.

SPECIFICATIONS:

• Swing: 17″ over bed, 10″ over gap
• Distance Between Centers: 40″
• Spindle Bore: 3-1/8″
• Spindle Speeds: 36-1800 RPM
• Feed Rates: 0.0005-0.0315 IPM
• Threads: Wide range of inch, metric, modular, and diametral threads
• Motor: 7.5 HP, 230/460V, 3-phase
• Weight: 3747 lbs
• Dimensions: 94″ x 44″ x 68″

HOW TO USE:

1. Disclaimer: Always refer to the user manual for detailed instructions and safety precautions before operating the lathe.
2. Set Up:
   1. Ensure the lathe is securely mounted on a level surface.
   2. Connect to the power supply and coolant supply.
3. Workpiece Preparation:
   1. Securely clamp the workpiece in the chuck or between centers.
4. Tool Selection:
   1. Choose the appropriate cutting tool for the desired operation and securely mount it in the tool post.
5. Speed and Feed Settings:
   1. Select the appropriate spindle speed and feed rate based on the material and cutting tool.
6. Engage Drive:
   1. Engage the spindle and feed mechanisms according to the desired operation.
7. Machining Process:
   1. Carefully execute the cutting operation, monitoring tool wear and workpiece condition.
8. Coolant Application:
   1. Apply coolant as needed to prevent overheating and improve tool life.
9. Safety Precautions:
   1. Wear appropriate safety gear, such as safety glasses and hearing protection.
   2. Always observe safety guidelines.

BENEFITS OF USING JET EGH-1740 LATHE WITH NEWALL DP700 DRO (892511):

• Increased Productivity: The lathe’s versatility and efficiency enable faster production rates.
• Improved Accuracy: Precision engineering and the Newall DP700 DRO ensure high-quality finished parts.
• Enhanced Safety: Built-in safety features protect both the operator and the machine.
• Lower Maintenance Costs: Durable construction and easy maintenance reduce downtime and repair expenses.
• Versatile Applications: Suitable for a wide range of metalworking tasks, from hobbyist projects to industrial production.

FEATURES:

• Meehanite castings
• Turcite-B coatings
• Universal gearbox
• Enclosed coolant system
• Nylon safety gears
• Overload protection
• CNC-style lighting
• Front-facing chip pan
• Newall DP700 DRO
• Hardened and ground components
• Wide bedways
• Anti-float design
• One-shot lubrication
