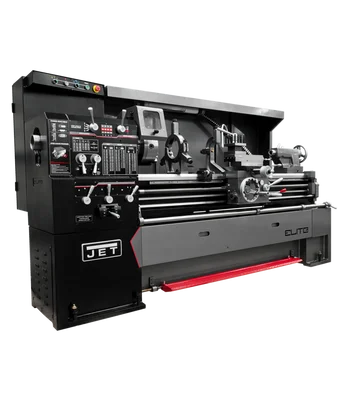

Jet EGH-1740 Lathe w/ACU-RITE 303 DRO Taper & Collet Closer (892510)

Description

The Jet EGH-1740 Lathe w/ACU-RITE 303 DRO Taper & Collet Closer (892510) is a heavy-duty machine built for precision and performance. Combining robust construction with innovative features, this lathe is ideal for professional machinists and serious hobbyists alike.

KEY FEATURES AND BENEFITS:

• Durable & Reliable: Meehanite® cast iron bed absorbs vibration and maintains rigidity for long-lasting use.
• Versatility: The universal gearbox allows for cutting various threads (inch, metric, modular, diametral) without gear changes. The large 3-1/8″ spindle bore accommodates larger diameter workpieces.
• Precision Machining: Class 7 precision taper roller bearings minimize runout for exceptional accuracy. Hardened and ground gears further reduce vibration and deflection.
• Smooth Operation: Turcite-B coating between the bed and carriage minimizes friction for smooth, precise movements. Anti-float design eliminates backlash in the cross slide for consistent results.
• Convenient Features: The enclosed coolant system with chip pan simplifies cleanup and coolant management. One-shot lubrication system reduces maintenance needs.
• Safety First: Nylon safety gears and overload protection features enhance user safety.

SPECIFICATIONS:

• Product: Jet EGH-1740 Lathe w/ACU-RITE 303 DRO Taper & Collet Closer (892510)
• Size: 17″ x 40″
• Swing Over Bed: 17″
• Swing Over Cross Slide: 11″
• Spindle Speeds: 12 (36 – 1,800 RPM)
• Digital Readout (DRO): ACU-RITE 303
• Motor: 7-1/2 HP

HOW TO USE:

• Step 1: Place the lathe on a stable, level surface and secure it using the leveling pads provided.
• Step 2: Connect the lathe to a suitable power source, ensuring the voltage matches the motor specifications.
• Step 3: Install the workpiece into the 3-jaw chuck and tighten securely.
• Step 4: Adjust the spindle speed using the controls to match the material and desired cut.
• Step 5: Engage the spindle and start machining, using the ACU-RITE 303 DRO to monitor and adjust positioning accurately.
• Step 6: Utilize the one-shot lubrication system as needed to ensure smooth operation.
• Step 7: After finishing the machining process, turn off the lathe, remove the workpiece, and clean up any debris using the chip pan.

BENEFITS OF USING Jet EGH-1740 Lathe w/ACU-RITE 303 DRO Taper & Collet Closer (892510):

• Robust and durable construction for long-lasting use.
• High precision with minimal runout for accurate machining.
• Versatile threading options without needing to change gears.
• Safety features to protect the user during operation.
• User-friendly design with convenient features like a coolant system and one-shot lubrication.

FEATURES:

• Durable Meehanite® cast iron bed for vibration absorption and rigidity.
• Universal gearbox for versatile thread cutting without gear changes.
• Class 7 precision taper roller bearings for minimal runout and high accuracy.
• Turcite-B coating for smooth movement and reduced friction.
• One-shot lubrication system for easy maintenance.
