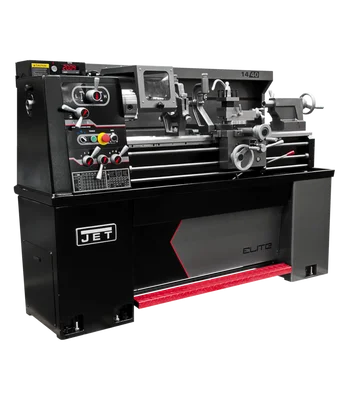

Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment (892466)

Description

The Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment (892466) is a powerful and compact metal lathe from Jet’s Elite series. It’s perfect for schools, small shops, and engineering labs that need a versatile and precise machine without sacrificing valuable space. This lathe packs a 3 HP motor and a wide range of variable speeds (0-2200 RPM) for handling a variety of metalworking projects.

KEY FEATURES AND BENEFITS:

• Compact Footprint: Ideal for small shops and labs.
• Powerful 3 HP Motor: Handles demanding metalworking tasks.
• Variable Speed Drive: Provides precise speed control for different materials and applications.
• ACU-RITE 303 CSS DRO: Digital readout for accurate measurements.
• Taper Attachment: Increases machining capabilities.
• Electromagnetic Brake: Ensures fast and safe stopping.
• Ball-Bearing Mounted Steady & Follow Rests: Provides smooth material movement.
• Hardened and Ground Gears: Reduces vibration and deflection for improved accuracy.
• Coolant System: Extends tool life and improves chip removal.
• Certified Meehanite® Castings: Maintain rigidity and precision over time.

SPECIFICATIONS:

• Swing Over Bed: 14 in.
• Swing Over Cross Slide: 8-5/8 in.
• Swing Through Gap: 20 in.
• Spindle Bore: 1-1/2 in.
• Spindle Speeds: Variable (0-2,200 RPM)
• Number of Longitudinal and Cross Feed Rates: 80
• Motor: 3 HP, 230V, 3-Phase
• Weight: 1653 lbs.
• Overall Dimensions (L x W x H): 77 in. x 30 in. x 58 in.

HOW TO USE:

1. Set up the workpiece: Secure the metal stock in the lathe’s chuck or between the centers.
2. Select the appropriate speed and feed rate: Choose the speed and feed rate based on the material and the desired cut. Refer to the lathe’s manual for recommended settings.
3. Engage the spindle: Start the spindle and bring it up to the desired speed.
4. Position the cutting tool: Use the compound slide and cross slide to position the cutting tool for the desired cut.
5. Start machining: Engage the feed and slowly move the carriage along the bed to make the cut.
6. Monitor the process: Pay close attention to the cutting operation and make adjustments as needed.
7. Stop the lathe: Once the cut is complete, disengage the feed and stop the spindle.

BENEFITS OF USING Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment (892466):

• Versatility: Handles a wide range of metalworking projects.
• Precision: Delivers accurate results with digital readout and high-quality components.
• Compact Design: Saves valuable space in workshops and labs.
• Durability: Built with robust construction for long-lasting performance.
• Safety Features: Includes an electromagnetic brake and chuck guards for increased safety.

FEATURES:

• 4-Position Carriage Stop
• Chuck guards for increased safety
• Front facing chip pan for easy chip removal
• Hardened and ground gears in headstock for reduced vibration
• Inverter drive system for infinitely variable spindle speeds
• LED RPM readout for precise turning speeds
• Two-speed gearbox for a wide range of speeds
