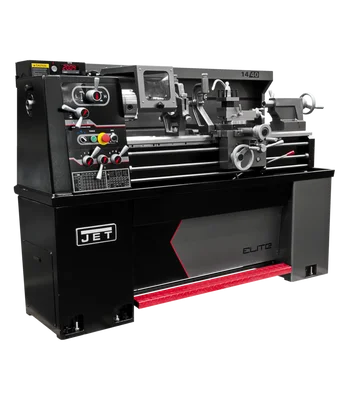

Jet E-1440VS With ACU-RITE 203 DRO With Taper & Collet Closer (892456)

Description

The Jet E-1440VS With ACU-RITE 203 DRO With Taper & Collet Closer (892456) is a versatile metalworking lathe designed for small shops, schools, and engineering labs. This space-saving lathe packs a powerful 3 HP motor and a wide range of features into a compact footprint.

KEY FEATURES AND BENEFITS:

• Compact Design: Ideal for workshops with limited space.
• Powerful Performance: 3 HP motor tackles a variety of machining tasks.
• Precise Control: Variable spindle speeds with inverter drive system and ACU-RITE 203 DRO for accurate positioning.
• Safe Operation: Electromagnetic brake for rapid stopping and safety features like a chuck guard and enclosed splash guard.
• Versatility: Taper attachment and collet closer enable use of tapered shank tooling.
• Durable Construction: Rigid Meehanite castings and hardened and ground gears ensure long-lasting performance.
• Smooth Operation: Ball-bearing mounted steady and follow rests for smooth material movement.
• Wide Range of Capabilities: Cuts threads, performs facing, turning, and drilling operations.

SPECIFICATIONS:

• Swing over bed: 14″
• Distance between centers: 40″
• Spindle speeds: 0-2200 RPM
• Number of threads: 40 inch, 22 metric
• Overall dimensions: 77 x 30 x 58 inches
• Weight: 1653 lbs
• Motor: 3 HP, 230V, 3-Phase
• Standard Equipment: 6″ 3-jaw chuck, faceplates, steady rest, follow rest, tool post, chuck guard, carriage stop, threading dial, coolant system, center sleeve, dead center, leveling pads, toolbox with tools

HOW TO USE:

1. Setup: Install the lathe on a sturdy workbench and level it using the leveling pads. Secure the workpiece in the chuck or between centers.
2. Select Speed and Feed: Choose the appropriate spindle speed and feed rate based on the material and machining operation. Refer to the manual for recommended settings.
3. Engage Safety Features: Ensure the chuck guard is in place and activate the coolant system if necessary.
4. Start Machining: Power on the lathe, engage the spindle, and use the handwheels or automatic feed to control the cutting tool.
5. Monitor and Adjust: Continuously monitor the machining process and adjust speed or feed as needed to achieve desired results.
6. Power Down: Once complete, power off the lathe, disengage the spindle, and remove the workpiece.

BENEFITS OF USING Jet E-1440VS With ACU-RITE 203 DRO With Taper & Collet Closer (892456):

• Increased Efficiency: The powerful motor and variable speed control allow for efficient machining of various materials.
• Improved Accuracy: The ACU-RITE DRO and rigid construction ensure precise cuts and repeatable results.
• Enhanced Safety: Built-in safety features like the electromagnetic brake and enclosed splash guard minimize risks during operation.
• Space-Saving Design: The compact footprint makes it ideal for workshops with limited space.
• Versatility: Handles a wide range of turning, facing, drilling, and thread cutting operations.

FEATURES:

• 3 HP motor
• Variable speed inverter drive system
• ACU-RITE 203 DRO
• Taper attachment and collet closer
• Electromagnetic brake
• Chuck guard
• Enclosed splash guard
• Meehanite castings
• Hardened and ground gears
• Ball-bearing mounted steady and follow rests
• LED RPM readout
• Heavy-duty stand with foot brake
• Coolant system
• Standard tooling included
