Description

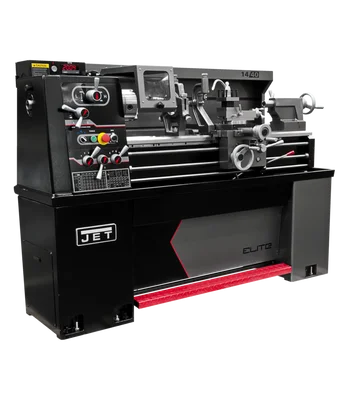

The Jet E-1340VS With ACU-RITE 303 CSS DRO With Taper Attachment (892416) is a powerful and versatile engine lathe ideal for schools, small machine shops, and engineering labs. Despite its compact footprint, it packs a punch with a 3 HP motor and a variety of features designed for precise metalworking.
KEY FEATURES AND BENEFITS:
- Variable Speed Drive: Infinitely adjust spindle speeds (0-2,200 RPM) for optimal cutting performance on various materials.
- Digital Readout (ACU-RITE 303 CSS): Achieve high-precision machining with digital readouts for both longitudinal and cross feeds.
- Taper Attachment: Create tapered holes for specialized applications.
- Electromagnetic Brake: Ensures rapid stopping for increased safety and efficiency.
- Hardened and Ground Gears: Reduce vibration and deflection for smoother operation and improved finish quality.
- Durable Construction: Cast iron bed and Meehanite castings provide long-lasting rigidity and dimensional stability.
- Standard Equipment: Includes a 3-jaw chuck, steady rest, follow rest, coolant system, tooling, and more for a complete metalworking solution.
SPECIFICATIONS:
- Swing over bed: 13 inches
- Distance between centers: 40 inches
- Spindle speeds: 0-2,200 RPM
- Spindle taper: MT-5 with sleeve (MT-3 in tailstock)
- Motor: 3 HP, 230V, 3-Phase
- Weight: 1433 lbs
HOW TO USE:
- Preparation: Secure your workpiece in the chuck or between centers. Ensure proper safety gear is worn.
- Power On and Speed Selection: Turn on the lathe and adjust the variable speed drive to the desired RPM for your material and machining operation.
- Tool Selection: Select the appropriate cutting tool and mount it securely in the tool post.
- Machining: Engage the longitudinal and/or cross feeds to move the cutting tool against the workpiece, creating the desired shape.
- Monitoring and Adjustments: Utilize the digital readout for precise measurement and make adjustments as needed throughout the machining process.
BENEFITS OF USING Jet E-1340VS With ACU-RITE 303 CSS DRO With Taper Attachment (892416):
- Compact Design: Ideal for workshops with limited space.
- Versatility: Handles a wide range of metalworking projects.
- Precision Machining: Delivers high-quality results with digital readouts and variable speed control.
- Durability: Built to last with robust construction and quality components.
- Safety Features: Electromagnetic brake and chuck guards for increased operator safety.
FEATURES:
- Electromagnetic brake for rapid stopping
- Inverter drive system for variable spindle speeds
- Digital readout (ACU-RITE 303 with CSS)
- Taper attachment for creating tapered holes
- Hardened and ground gears for reduced vibration
- LED readout for displaying precise spindle speeds
- Chuck guards for operator safety
- Overload clutch to prevent carriage crashes
