Description

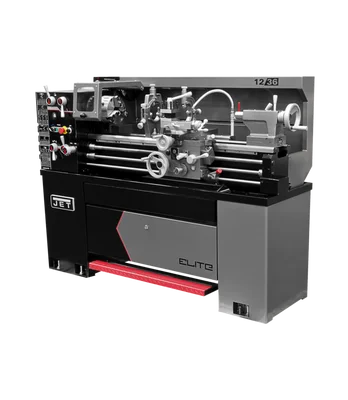

The Jet E-1236VS Lathe With Newall DP700 DRO (892319) is a compact yet powerful machine designed for schools, small workshops, and engineering laboratories. Built with precision and durability in mind, this lathe offers a range of features that make it suitable for various metalworking tasks.
KEY FEATURES AND BENEFITS:
- Newall DP700 DRO: Provides accurate digital readouts for precise measurements and control.
- Electromagnetic brake: Ensures rapid and safe stopping of the spindle.
- Inverter drive system: Offers variable spindle speeds for versatile operations.
- Certified Meehanite castings: Provide durability, stability, and vibration resistance.
- Ball bearing-mounted steady and follow rests: Ensure smooth material handling and support.
- CNC style lighting with enclosed splash guard: Improves visibility and protects the machine from debris.
SPECIFICATIONS:
- Swing over bed: 12 inches
- Swing over cross slide: 7-5/16 inches
- Distance between centers: 36 inches
- Spindle bore: 1-9/16 inches
- Motor: 2 HP, 230V, 3ph
- Threading capacities: 34 inch, 33 metric
- And many more detailed specifications: as listed in the provided information
HOW TO USE:
- Setting Up the Lathe:
- Ensure the lathe is placed on a stable, level surface.
- Connect the lathe to a properly grounded electrical outlet.
- Check all safety guards and components are securely in place.
- Install the desired cutting tools and workpiece according to safety guidelines.
- Operating the Lathe:
- Turn on the power switch and set the desired spindle speed using the inverter.
- Engage the feed or threading mechanism as needed.
- Carefully operate the controls to perform the desired machining operation.
- Monitor the cutting process and make adjustments as required.
- Gradually reduce spindle speed and disengage feeds before stopping the lathe.
- Cleaning and Maintenance:
- Regularly clean the lathe to remove chips and coolant.
- Lubricate moving parts according to the manufacturer’s recommendations.
- Inspect the lathe for any signs of wear or damage.
- Follow safety guidelines when performing maintenance tasks.
BENEFITS OF USING JET E-1236VS LATHE WITH NEWALL DP700 DRO (892319):
- Precision and accuracy: The Newall DP700 DRO ensures precise measurements and control.
- Efficiency: The inverter drive system allows for versatile operations.
- Durability: Certified Meehanite castings provide long-lasting performance.
- Safety: Electromagnetic brake and safety guards enhance operator protection.
- Versatility: Suitable for various metalworking tasks in schools, shops, and labs.
FEATURES:
- 4-position carriage stop
- Chuck guards for safety
- Front-facing chip pan for easy cleanup
- Hardened and ground gears for reduced vibration
- Integrated locking tool cabinet (12″ model)
- LED RPM readout for precise speed control
- Two-speed gearbox for various cutting conditions
- And many other features as listed in the provided information.
