Description

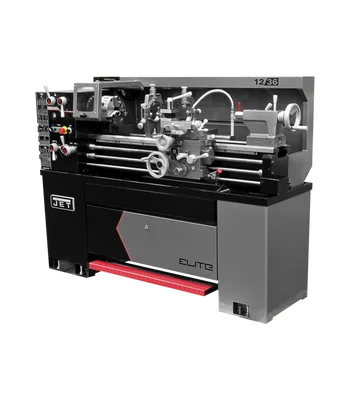

The Jet E-1236VS Lathe With ACU-RITE 303 CSS DRO (892315) is a compact yet powerful machine designed for schools, small shops, and engineering labs. It combines precision with durability, making it suitable for a wide range of metalworking tasks.
KEY FEATURES AND BENEFITS:
- Compact Design: Ideal for limited workspace while maintaining essential lathe features.
- Powerful Performance: 2 HP motor delivers sufficient power for various cutting operations.
- Accurate Machining: Hardened and ground gears, precision bearings, and ACU-RITE DRO ensure precise results.
- Safety Features: Electromagnetic brake, chuck guards, and overload clutch enhance operator safety.
- Durable Construction: Certified Meehanite castings provide long-lasting performance.
- Comprehensive Package: Includes essential accessories like chuck, faceplates, steady and follow rests, and tool post.
SPECIFICATIONS:
- Swing Over Bed: 12 inches
- Swing Over Cross Slide: 7-5/16 inches
- Distance Between Centers: 36 inches
- Spindle Bore: 1-9/16 inches
- Spindle Speeds: 40-365 RPM (low), 165-2000 RPM (high)
- Motor: 2 HP, 230V, 1 or 3 phase
- Digital Readout: ACU-RITE 303 W/ CSS
- Weight: 1213 lbs
- Dimensions: Width 30 inches, Height 57 inches, Length 67 inches
- Other specifications: refer to provided data
HOW TO USE:
- Disclaimer: Always refer to the user manual for detailed instructions and safety precautions before operating the lathe.
- Set Up: Ensure the lathe is securely placed on a level surface. Connect to power supply according to electrical requirements.
- Workpiece Preparation: Secure the workpiece between the lathe centers or in a chuck, depending on the operation.
- Tool Selection: Choose the appropriate cutting tool for the desired operation and securely mount it in the tool post.
- Speed and Feed Adjustment: Set the spindle speed and feed rate based on the material and cutting tool used.
- Operation: Engage the spindle and carefully feed the workpiece into the cutting tool. Use the cross slide and carriage to control depth of cut and length of cut.
- Coolant Application: Apply coolant as needed to prevent overheating and improve tool life.
- Safety Precautions: Wear appropriate safety gear, such as safety glasses and hearing protection. Always observe safety guidelines.
BENEFITS OF USING JET E-1236VS LATHE WITH ACU-RITE 303 CSS DRO (892315):
- Increased productivity due to efficient operation and accurate machining.
- Versatility to handle a wide range of metalworking tasks.
- Improved product quality through precise cuts and finishes.
- Cost-effective solution for schools, small shops, and hobbyists.
- Enhanced safety with built-in safety features.
FEATURES:
- Electromagnetic brake
- 3-jaw chuck
- Ball bearing-mounted steady and follow rests
- CNC-style lighting with enclosed splash guard
- CSA/CUS certified
- Certified Meehanite castings
- ACU-RITE 303 CSS DRO
- Inverter drive system
- LED RPM readout
- Coolant system
- Tool box with tools
