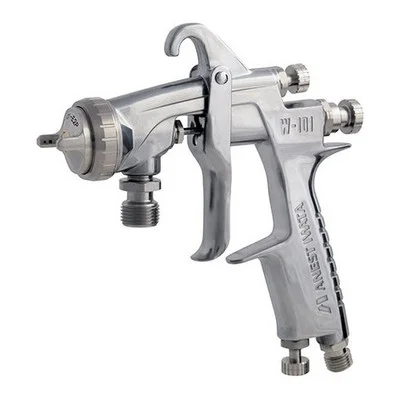

Iwata W101-181S 1.8mm Spray Gun w/PCL10B2 1000mL Cup (4447B)

Description

The Iwata W101-181S 1.8mm Spray Gun w/PCL10B2 1000mL Cup (4447B) is a professional-grade tool engineered for superior paint application. This model represents a significant upgrade from the previous W100 series, incorporating major enhancements to the air cap set, fluid nozzle, and gun body. Designed for consistent and high-quality results, the W101-181S excels in delivering improved atomization and a stable spray pattern, which effectively minimizes common issues like mottling and blotching. Its design also reduces paint build-up on the air cap, simplifying maintenance and ensuring continuous optimal performance. The ergonomic redesign of the gun body contributes to a more balanced and lightweight feel, directly addressing painter fatigue during extended use. This siphon feed spray gun with its 1.8mm nozzle is well-suited for a variety of coatings, including primers, middle coats, and topcoats, making it a versatile addition to any professional’s toolkit.

KEY FEATURES AND BENEFITS:

• Improved Atomization Performance: Achieves a finer mist, leading to a smoother and more uniform finish.
• Stable Spray Pattern Shape: Ensures consistent coverage and an even application across the workpiece, minimizing irregularities.
• Decreased Mottling and Blotching: Reduces common paint defects, resulting in a cleaner and higher-quality final appearance.
• Reduced Paint Build-up on Air Cap: Lessens the need for frequent cleaning, maintaining consistent spray quality and prolonging operational time.
• Redesigned Ergonomic Gun Body: Offers a comfortable grip and balanced weight, significantly reducing painter fatigue during prolonged use.
• Versatile 1.8mm Nozzle: Ideal for applying a wide range of materials, including primers, middle coats, and many topcoats.
• Large 1000mL Siphon Cup: Provides ample capacity for larger painting projects, reducing the frequency of refills.

SPECIFICATIONS:

• Nozzle Size: 1.8 mm
• PSI: 35
• CFM: 6.0
• Fluid output (ml/min): 210
• Pattern Width: 6.7 inches
• Air cap model: W101-N1
• Fluid inlet: 1/4″
• Air inlet: 1/4″
• Weight: 0.65 lbs
• Included in Product: W101-181S Siphon Feed Spray Gun, PCL10B2 1000mL Siphon Cup

HOW TO USE:

1. Prepare the Paint: Mix your paint to the recommended consistency and strain it to remove any impurities. Pour the prepared paint into the PCL10B2 1000mL siphon cup.
2. Attach the Cup: Securely attach the filled siphon cup to the bottom of the spray gun.
3. Connect Air Supply: Connect an air hose from your air compressor to the air inlet (1/4″) on the spray gun. Ensure the compressor is set to deliver 35 PSI.
4. Adjust Settings: Before spraying on your workpiece, perform a test spray on a scrap piece of material. Adjust the fluid output and spray pattern width as needed to achieve the desired finish.
5. Apply Paint: Hold the spray gun at the recommended spraying distance (approximately 7.9 inches or 200mm) from the surface. Maintain a consistent speed and overlap with each pass to ensure even coverage.
6. Clean After Use: Immediately after painting, disassemble the gun and clean all paint-contacting parts thoroughly with appropriate cleaning solvents to prevent paint drying inside the gun.

BENEFITS OF USING IWATA W101-181S 1.8MM SPRAY GUN W/PCL10B2 1000ML CUP (4447B):

• Delivers precise atomization for smooth, professional-quality finishes.
• Maintains a consistent spray pattern that minimizes the need for rework.
• Reduces defects like mottling and blotching, enhancing visual appeal.
• Minimized paint build-up leads to easier maintenance and fewer interruptions.
• Comfortable, ergonomic design supports prolonged use with reduced fatigue.
• Highly reliable tool for professionals handling a wide range of coating tasks.

FEATURES:

• Uses a siphon feed mechanism for reliable paint flow.
• Equipped with precision-machined air cap and fluid nozzle.
• Features a lighter, better-balanced gun body for enhanced control.
• Constructed to resist external paint accumulation.
• Offers fine-tuned controls for adjusting spray pattern and fluid output.
• Delivers consistent performance across various material viscosities.
• Standard 1/4″ fluid and air inlets ensure broad compatibility with accessories.
