Description

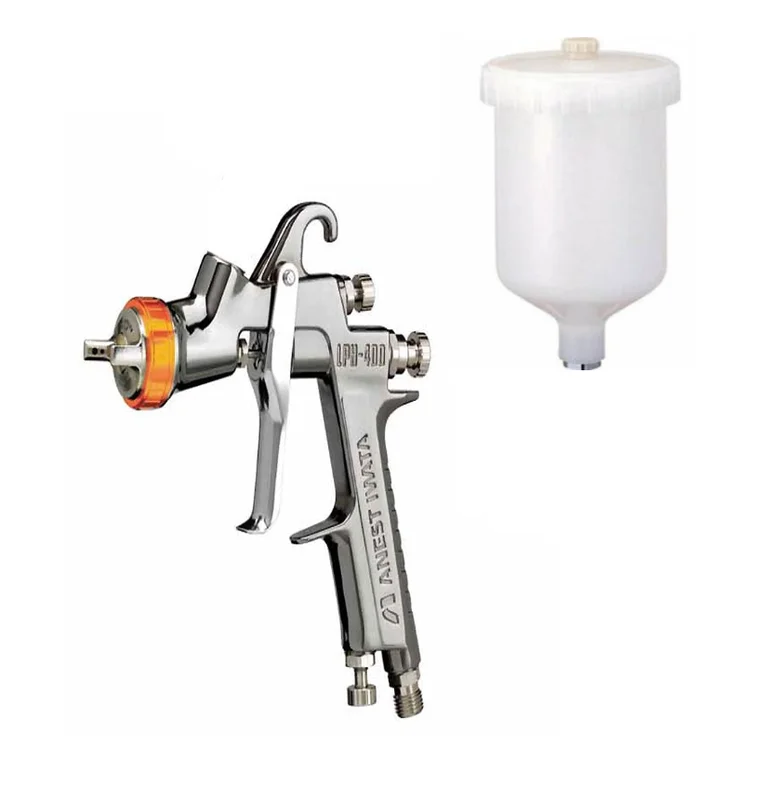

5661 LPH-400 LPH400-134LVX GUN/CUP(PCG6PM)
Teaming up with our LPH400 LVB the LPH400 LVX eXtreme basecoat technology was developed for use with 90-95% of basecoat colors and engineered to provide increased productivity in application for solvent or waterborne basecoats. While the LPH400 LVB remains the set-up for the most difficult or complex colors the LPH400 LVX handles all the middle range colors where productivity and speed is a must. Extensive field-testing and painter evaluation reports prove that the LPH400 LVX is much faster than the competition and has an ultra smooth application with no technique change. Inlet pressures, spray distance and overlap are the same for the LPH400 LVX as a normal LPH400 LV.
| Max Working Pressure | 98 PSI |
| Noise Level | 69.4 dB(A) |
| Spray condition | Recommended |
| Measuring point | 1m backwards from gun 1.6m height |
| Temperature Level (atmosphere) | 41-104°F |
| Type of Feed | Gravity |
| Nozzle Orifice (in.) | 0.051 |
| Air Cap Set | LVX |
| Atomizing air Pressure (PSI) | 16 PSI |
| Air Pressure Inside Air Cap | 0.07 – 10 PSI |
| Fluid Output | 120 ml/min |
| Air consumption | 9.8 CFM |
| Pattern Width (in.) | 11.8 |
| Air & Fluid Connection | G1/4 (AIR)(NPS1/4) – M16 x 1.5 (FLUID) |
