Description

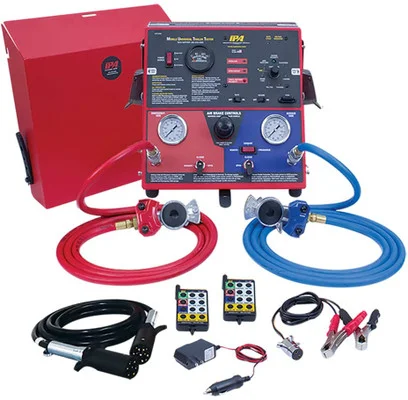

Innovative Products of America 9005A Super MUTT Head Trailer Tester (7 Round Pin Style)
The Super-MUTT® HEAD is a portable, remote controlled diagnostic Trailer Tester for inspecting lighting, ABS and air brake systems on commercial type trailers. Specially designed for service trucks and offsite inspections, the Super MUTT® head is powered by an (optional) internal 12v battery, or external power source such as a service truck battery, using the supplied external connector and requires shop air for air brake application. The Super MUTT® head features the same industry leading diagnostic program as the Super MUTT® Deluxe and Smart MUTT® which instantly identifies Crossed, Open, Shorted Circuits, bad grounds, and overloads. The Super MUTT® Head is available in two equipment packages: includes Glad Hand hoses, 7-way cable, external power supply cord, (3) remote controls, battery charger, Face Shield and chassis ground connector.
- Operate air brakes by remote control (100 foot operating range)
- Real time, repetitive brake activation to find developing problems and verify leaking servo cans
- Perform leak down test on service and emergency lines
- Adjust slackers and measure pushrods using remote control
- Power lights individually, all at once, via auto scan or remote control
- Ground failure detection: differentiates between wire and chassis ground
- Indentifies open circuits and cross-wired circuits
- Pulses power to shorted and overloaded circuits (patented Pulsar® technology)
- ABS fault codes via Aux and brake circuit activation (i.e. Wabco/Bendix Tab-6 systems)
- Amperage readout (0-20 amps)
- Audible and visual alerts
- 7-way “pigtail” Cable Testing
- Sync Multiple (24) Remotes to one unit
- Made in USA
- Internal Battery Compartment (Fits YAUSA YTX14 or Similar Battery )
Specifications:
- Power: 12 or 24 volts DC
- Air Input: 120 PSI Shop Air
- Power Input: Group 31 (or similar battery) or external 12 volt power source
- Output: 20 amps @ 12 volts DC
- Connection Type: 7-Way Round Pin
- Controls: Manual, Remote, Automatic
- Materials: Steel construction
