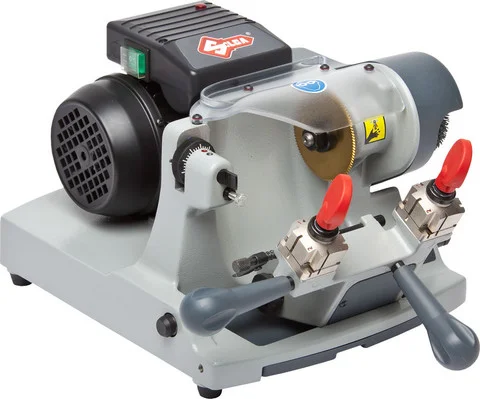

Ilco 110V Manual Key Cutting Machine (SPEED045)

Description

The Ilco 110V Manual Key Cutting Machine (SPEED045) is a reliable and efficient solution for duplicating edge cut keys. Designed for versatility, it handles a wide range of keys, including automotive, residential, and commercial. Its compact design and included mounting bracket make it suitable for both shop and mobile use. The SPEED 045 prioritizes safety and ease of use, making it an excellent choice for locksmiths, hardware stores, and other businesses requiring key duplication services.

KEY FEATURES AND BENEFITS:

• Versatile Jaws: Four-sided, nickel-plated jaws accommodate various edge cut/flat key types.
• Wide Spacing: 3.5″ (88.9 mm) spacing between clamps handles large bow and long blade keys.
• Precise Calibration: Depth tracer system with micro-adjustment for accurate duplication.
• Quality Cutter: Titanium Nitride (TiN) coated cutter for extended life.
• Safety Features: Electro-magnetic main safety switch and cutter safety shield.
• Convenient Design: Large drawer-type swarf tray for easy cleanup.
• Included: Mounting bracket for secure placement.

SPECIFICATIONS:

• Power Supply: 120V-60Hz
• Maximum Absorbed Power: 2.8 Amp, 200 Watt
• Cutter Motor: Single phase and speed
• Tool Speed: 1350 rpm
• Dimensions: 15.75″ (400 mm) Width x 18.1″ (460 mm) Depth x 10.2″ (260 mm) Height
• Weight: 31 lbs (14 kg)

HOW TO USE:

• Select the Key: Choose the original key to be duplicated.
• Clamp the Key: Secure the original key in the appropriate jaws.
• Set the Depth: Adjust the depth tracer to match the original key’s depth.
• Clamp the Blank: Insert the blank key into the other set of jaws.
• Cut the Key: Engage the cutter motor and carefully trace the original key’s profile.
• Deburr: Use the nylon deburring brush to remove any sharp edges.

BENEFITS OF USING THE ILCO 110V MANUAL KEY CUTTING MACHINE (SPEED045):

• The Ilco SPEED 045 offers several key benefits. Its precise calibration system ensures accurate duplicates, saving time and reducing waste.
• The durable cutter and robust construction provide long-lasting performance.
• The safety features offer peace of mind during operation.
• Its versatility and ease of use make it a valuable tool for any key cutting operation.

FEATURES:

• Four-Sided Nickel-Plated Jaws: For various key types.
• Micro-Adjustment Depth Tracer: For precise cuts.
• TiN Coated Cutter: For extended cutter life.
• Electromagnetic Safety Switch and Cutter Shield:
• Removable Swarf Tray: For easy maintenance.
• Nylon Deburring Brush: For finishing keys.
• Ergonomic Handle: And easy-to-use clamps.
