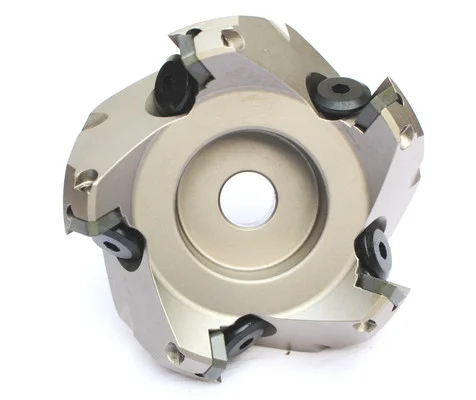

HHIP 3″ X 1 BORE 45 DEGREE SE42 INDEXABLE FACE MILL WITH 5 TEETH (2067-3000)

Description

3″ X 1 Bore 45 Degree SE42 Indexable Face Mill With 5 Teeth ~ 45° lead angle allows an increase of feed rate by 50% over 90 degree face mill and also allows this face mill to used on smaller horse power mills. ~ It accepts industry standard SEAN / SEKN / SEKR 42 inserts which have a positive 20° clearance angle. ~ The insert pockets are designed to be 19° positive inclined to minimize vibration and allow fast cutting while lowering cutting noise. ~ Inserts are NOT included. ~ Overall height is 1.97″. ~ D1 is 3.53″. ~ ap is 15/64″. ~ Shim size is SEAD42AD (#2100-4200). ~ Replacement screw SM815.18L (#2100-0051). 45° lead angle allows an increase of feed rate by 50% over 90 degree face mill and also allows this face mill to used on smaller horse power mills. For use with industry standard SEAN / SEKN / SEKR 42 inserts which have a positive 20° clearance angle. The insert pockets are designed to be 19° positive inclined to minimize vibration and allow fast cutting while lowering cutting noise. Inserts are NOT included. Overall height is 1.97″.
