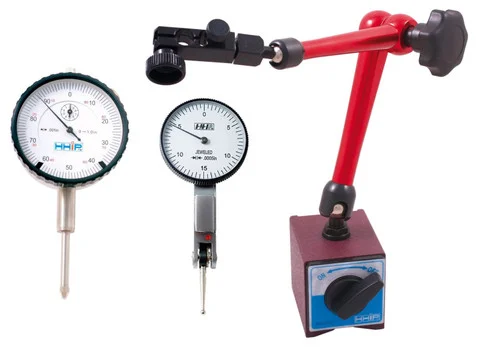

HHIP 0.03″ DIAL TEST & 1″ DIAL INDICATORS WITH UNI MAGNETIC BASE (4400-0018)

Description

3 Piece Set with 0.03″ Dial Test Indicator, 1″ Dial Indicator & Uni Magnetic Base ~ 0-0.03″ Indicator Specifications: dovetail mount top, back, & front; fitted case & 2 stems (7/32″ & 1/4″); reading is 0-15-0; graduation is .0005″; precision pivot bearing; 0.098″ contact point; satin chrome finish; jeweled movements; automatic reversing. ~ 0-1″ Dial Indicator Specifications: graduation is .001″; contact point has 4-48 thread; stem is 3/8″ diameter; rack & contact point are made of hardened stainless steel; jeweled movement; 2″ diameter dial face; lug back. ~ Uni Magnetic Base Specifications: 3-D rigid steel arm movement; unique central locking mechanism; fine adjustable; on/off switch; super power pull of 130 lbs.; base dimension is 2″ (Width) X 2-1/2″ (Depth). 0-0.03″ Indicator Specifications: dovetail mount top, back, & front; fitted case & 2 stems (7/32″ & 1/4″); reading is 0-15-0; graduation is .0005″; precision pivot bearing; 0.098″ contact point; satin chrome finish; jeweled movements; automatic reversing. 0-1″ Dial Indicator Specifications: graduation is .001″; contact point has 4-48 thread; stem is 3/8″ diameter; rack & contact point are made of hardened stainless steel; jeweled movement; 2″ diameter dial face; lug back. Uni Magnetic Base Specifications: 3-D rigid steel arm movement; unique central locking mechanism; fine adjustable; on/off switch; super power pull of 130 lbs.; base dimension is 2″ (Width) X 2-1/2″ (Depth).
