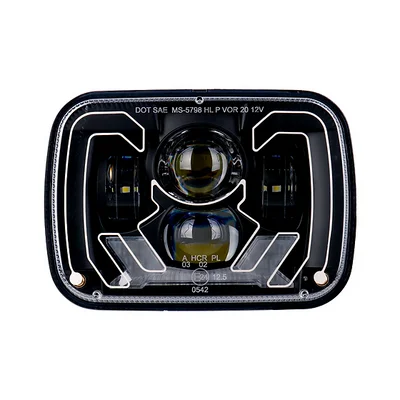

Haizer USA 5″x7″ Heated Blk Projector Headlight DRL & TS (HZR-5798H-B)

Description

Experience reliable and clear illumination in all weather conditions with the Haizer USA 5″x7″ Heated Blk Projector Headlight DRL & TS (HZR-5798H-B). Specifically engineered to perform in cold and snowy environments, this advanced headlight features a heated lens with automatic defrosting, ensuring optimal light output when you need it most. Combining powerful LED technology with integrated safety features like Daytime Running Lights (DRL) and turn signals, the Haizer HZR-5798H-B provides superior visibility and a focused beam pattern for a safer driving experience. Its robust construction and universal design make it a practical upgrade for a wide range of vehicles.

KEY FEATURES AND BENEFITS:

• Heated Lens with Automatic Defrosting: Maintains clear vision in freezing temperatures by automatically activating heating at 37.4°F (outer sensor) or 95°F (inner sensor), preventing ice and snow buildup on the lens.
• Superior LED Illumination: Utilizes advanced projector LED technology to deliver a bright, focused, and long-reaching beam pattern for enhanced night driving visibility.
• Integrated DRL and Turn Signals: Increases vehicle conspicuity during daylight hours with bright DRLs and clearly signals turns with integrated amber turn signals, contributing to overall road safety.
• Robust and Weather-Resistant Construction: Built with a die-cast aluminum housing and a polycarbonate lens, providing excellent resistance to impacts, vibration, and environmental elements, ensuring long-term performance.
• Universal 5×7 Inch Fitment: Designed to directly replace standard 5×7 inch (also known as 7×6 inch) sealed beam headlights, making it compatible with numerous vehicle models without extensive modifications.

SPECIFICATIONS:

• Part Number: HZR-5798H-B
• Size: 5×7 Inches (Rectangular)
• Power: 55W
• High Beam: 11 x 5W LED, 4,200 Lumens
• Low Beam: 6 x 5W LED, 2,800 Lumens
• Color Temperature: 6,500K
• Temperature Sensor: 2 Sensors (1 Internal and 1 External)
• Heating Activation: Automatic at 37.4°F (Outer sensor) or 95°F (Inner sensor)
• Housing Material: Die-cast aluminum
• Housing Color: Black (Also available in Chrome as HZR-5798H-C)
• Lens Material: Polycarbonate
• Waterproof Rate: IP67
• Lifespan: > 50,000 Hours
• Connector: Standard H4
• Included in Product: 1x Haizer HZR-5798H-B Headlight Unit

HOW TO USE:

1. Preparation: Ensure your vehicle’s engine is off and the battery is disconnected for safety. Gather necessary tools, which typically include a screwdriver and potentially a ratchet set, depending on your vehicle’s headlight assembly.
2. Remove Existing Headlight: Carefully remove the bezel or trim surrounding your current 5×7 inch sealed beam headlight. Disconnect the electrical connector from the back of the old headlight. Unfasten any retaining clips or screws holding the old headlight in place and remove it.
3. Connect New Headlight: Plug the standard H4 connector of the Haizer HZR-5798H-B headlight into your vehicle’s existing headlight harness. Ensure a secure connection. If there are separate wires for DRL or turn signals, connect them according to your vehicle’s wiring diagram or an adapter harness if necessary.
4. Install New Headlight: Position the Haizer HZR-5798H-B headlight into the vehicle’s headlight bucket. Secure it using the original retaining clips or screws. Reattach any removed bezels or trim pieces.
5. Test Functionality: Reconnect the vehicle’s battery. Turn on your vehicle’s lights to test the high beam, low beam, DRL, and turn signal functions. Ensure all functions are operating correctly. Adjust the headlight aim if necessary, following your vehicle’s specifications.

BENEFITS OF USING HAIZER USA 5″X7″ HEATED BLK PROJECTOR HEADLIGHT DRL & TS (HZR-5798H-B):

• Improved Safety in Adverse Conditions: The heated lens prevents ice and snow accumulation, maintaining maximum light output and ensuring clear forward visibility in cold and snowy weather, significantly enhancing driving safety.
• Reduced Maintenance: Automatic defrosting means less manual cleaning of headlights during winter, saving time and effort.
• Enhanced Driving Comfort: A brighter, more focused beam pattern reduces eye strain during night driving and allows for earlier detection of road hazards.
• Increased Vehicle Presence: Integrated DRLs make your vehicle more noticeable to other drivers during the day, reducing the risk of accidents.
• Long-Term Reliability: With a robust build and a lifespan exceeding 50,000 hours, this headlight offers enduring performance, minimizing the need for frequent replacements.

FEATURES:

• Integrated 55W LED light source.
• Utilizes 11 high-power LEDs for high beam mode.
• Employs 6 high-power LEDs for low beam mode.
• Provides crisp white light with a 6500K color temperature.
• Features an advanced two-sensor heating system for lens defrosting.
• Designed with a highly transparent polycarbonate lens cover.
• Constructed with a black finish die-cast aluminum housing.
• Resistant to water and dust with an IP67 protection rating.
• Engineered for an extended operational life of over 50,000 hours.
• Equipped with a standard H4 electrical connector.
• Includes embedded daytime running lights and amber turn signal functions.
• Certified by DOT, SAE, CE, and ROHS standards.
• Backed by a 1-year product warranty.
