Description

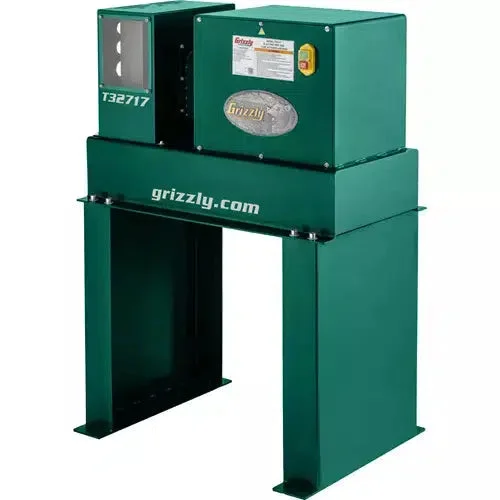

T32717 Electric Tubing Notcher with Stand

Quickly notch out tubing and keep your welding production on schedule.

The T32717 Electric Tube Notcher is designed to quickly notch or cope the ends of metal tubing before welding.

Choose from eight notching holes for notching tubes with diameters from 1/4″ to 2-1/4″ with walls up to 1/8″ thick.

The chip drawer catches notching chips and cut off pieces and is removable for easy emptying.

Like all Grizzly notchers, the T32717 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The T32717 owner’s manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based.

Parts and accessories for the notcher are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS

• Motor: 1-1/2 HP, 220V, single-phase, 8A
• Nominal diameter capacity: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 2″, 2-1/4″
• Maximum notch size: 2-1/4″
• Maximum wall thickness: 1/8″ (1″ Schedule 40)
• Suitable materials: Carbon steel, non-ferrous materials
• Notch angle: 90°
• Gear oil capacity: 2.1 Quarts
• Overall dimensions: 33″ W x 22-1/2″ D x 48″ H
• Approximate shipping weight: 452 lbs.

FEATURES:

• Removable chip drawer
• Transparent viewing windows
• AISI 4140 steel notching dies
