Description

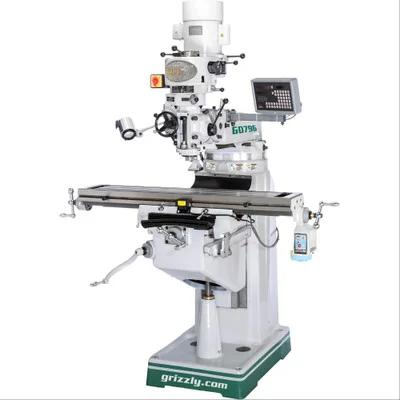

Grizzly Industrial 9″ x 49″ Vertical Mill with Power Feed and DRO (G0796) is designed for precision and versatility, making it a valuable addition to any workshop. The 9″ x 49″ table provides ample workspace and includes a longitudinal power feed for increased efficiency during operations.
The 2-axis DRO keeps your table position accurate, while the one-shot lubrication system ensures smooth operation. With its forward/reverse spindle switch and adjustable head tilt, this mill is perfect for professional and hobbyist applications alike.
- Specifications and Dimensions
- Motor: 3HP, 220V, single-phase, 19.5A
- Spindle taper: R-8
- Spindle travel: 5″
- Spindle speeds: 8, 80–2720 RPM
- Head ram travel: 12″
- Head tilt: 90° left/right, 45° front/back
- Turret/column swivel: 360°
- Maximum distance spindle to table: 15-7/8″
- Table travel (longitudinal): 28″
- Table travel (cross): 12″
- Table travel (vertical): 16″
- Table size: 9″ x 49″
- T-slots: 3 @ 2-1/2″ centers, 5/8″ wide
- Base footprint: 41″ x 27″
- Overall dimensions: 83″ W x 62″ D x 84″ H
- Approximate shipping weight: 2580 lbs.
- Key Features and Benefits
- Longitudinal power feed for efficient table operation
- 2-axis DRO for precise table positioning
- Durable Meehanite® castings for stability and accuracy
- Chrome-plated, precision-ground quill
- One-shot pump lubrication for smooth movement
