Description

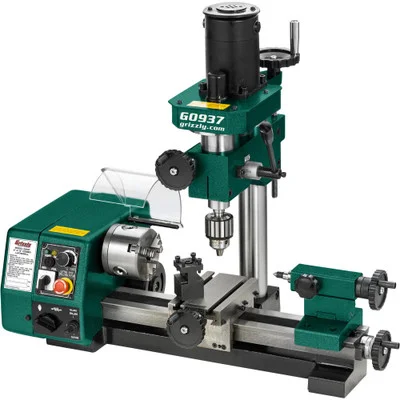

Grizzly Industrial 6″ x 10″ Combo Lathe/Mill (G0937) is a versatile machine perfect for precision machining projects. With variable-speed spindles and a dual cross slide mill table, this tool is designed to handle a variety of metalworking tasks with ease.
This combination lathe/mill is equipped with precision-ground cast-iron components, offering durability and stability. Featuring fine-feed clutches, adjustable speeds, and a T-slotted table, it’s an ideal choice for drilling, threading, and milling. Compact yet powerful, it is perfect for hobbyists and professionals alike.
- Specifications and Dimensions
- Lathe swing over bed: 6″
- Lathe swing over cross slide: 3″
- Distance between centers: 10″
- Lathe spindle speed: Variable, 100–2000 RPM
- Lathe spindle taper: MT#2
- Tailstock taper: MT#1
- Tailstock quill travel: 1″
- Mill swing: 4″
- Mill spindle speed: Variable, 100–1300 RPM
- Mill spindle taper: MT#2
- Table dimensions: 3-1/2″ x 5-1/2″
- Drilling capacity: 3/8″ (steel)
- Main motor (lathe & mill): 1/5 HP, 110V, single-phase, 1.8A
- Overall dimensions: 24-1/2″ W x 21″ D x 22-1/2″ H
- Approximate shipping weight: 106 lbs.
- Key Features and Benefits
- Variable-speed spindles for precise control
- Precision-ground cast-iron bed for stability
- Dual cross slide mill table for versatility
- Push/pull fine-feed clutch with handwheel
- Compact design perfect for small workspaces
- Compatible with MT#2 tooling for flexibility
- Includes 3-jaw chuck and turret tool post
