Description

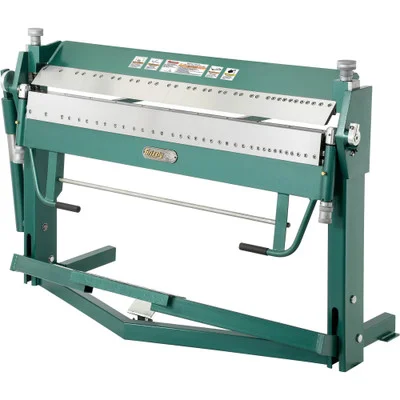

Grizzly Industrial 59″ Pan and Box Brake (T28325) offers unmatched precision and flexibility for bending mild steel up to 18-gauge thickness. With a 59-inch maximum working width and adjustable removable fingers, this brake allows for the creation of intricate box and pan shapes, making it essential for fabrication shops.
The built-in work stop with a 135° scale ensures repeatable production for consistent results. This heavy-duty brake is engineered to handle demanding projects with features like a 5/8″ minimum reverse bend capability and 2″ maximum pan depth.
- Specifications and Dimensions
- Maximum working width: 59″
- Maximum thickness at half width (mild steel): 16-gauge
- Maximum thickness at full width (mild steel): 18-gauge
- Brake range: 0-135°
- Minimum reverse bend: 5/8″
- Maximum pan depth: 2″
- Fingers: (2) 1-1/2″, (4) 2″, (5) 3″, (6) 4″, (1) 9″
- Overall dimensions: 71-1/2″L x 40-1/2″W x 46″H
- Approximate shipping weight: 1080 lbs.
- Key Features and Benefits
- Supports up to 18-gauge mild steel at full width
- Adjustable removable fingers for custom box and pan shapes
- 135° maximum bending angle for versatile applications
- Built-in work stop with a 135° scale for repeatable production
- Heavy-duty steel construction ensures durability
